Expansion Joints
The link between technology and success
- Reliable link
- European manufacture
- Advice from a sense of responsibility
- Help and guidance in any form
- Expert advice
- Expansion joints custom shape
Avoid:
- High costs due to damage to your system
- Unnecessary interruptions to your production process
- Risk of exposure to chemical fluids
- Risk of inflicting damage to the environment
- Hazards to the livable environment around your business
Rubber expansion joints
- Suitable for reducing and compensating for vibration, noise, pipe expansion and imperfections created during assembly, among other things.
- Easy-to-install rubber bellows expansion joints with steel or stainless steel flanges conforming to DIN or ANSI.
- Rubber bellows include EPDM, NBR, Hypalon and FPM.
PTFE expansion joints
- Suitable for chemical applications.
- Rapid assembly to customer specification.
- Alternative to rubber expansion joints.
Metal expansion joints
- Commonly used in the (petro)chemical industry, cogeneration plants and shipbuilding.
- Available as a simple standard metal expansion joint with welding connection or flanges to, for example, a specially designed multiple and multilayer expansion joint with leak detection.
- Possibly additionally equipped with tie rods or a cardan system.
- Design and manufacturing to EJMA standards.
Fiber Expansion Joints
- Commonly used for (hot) air and dust transport at lower pressures.
- Designed and manufactured to customer specification.
- Available in a wide variety of designs in terms of shape, construction, material and connections.

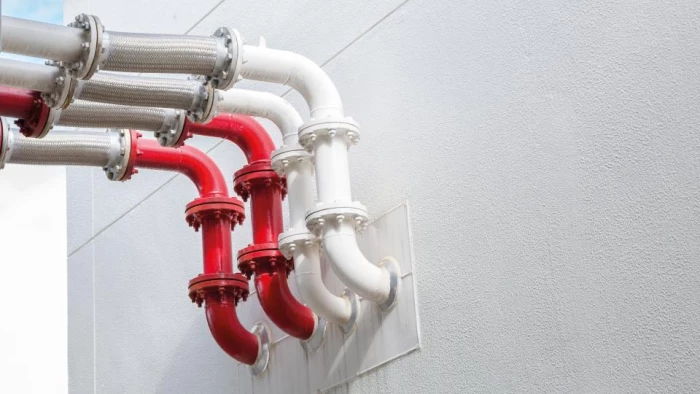

EXPAND AND CONTRACT
Under the influence of temperature changes, metals can expand or contract. This creates the possibility that pipes can deform due to large forces and pressure changes, causing damage to systems connected to them.
Mechanical vibrations caused by pumps, compressors, motors and other connected equipment can also seriously affect the condition of pipes. The same applies to medium vibrations caused by the pulsating nature of the medium.
Possible consequences
The expansion of metal in one direction is called linear expansion. As a result, a steel pipe of, say, 50 meters expands as much as 60 mm at a temperature of 100°C!
When the pipe is fully clamped and anchored, the pipe will deform and the connected systems will be torn away from the pipe. Not only can the consequential damage to your system be enormous, but also the dangers to you, your employees, our environment and nearby residents!
KNOWLEDGE AND ADVICE
You can prevent such consequences by deploying the right expansion joint. KLINGER supplies a wide range of high-quality expansion joints from renowned manufacturers. From our passion for technology and years of experience in various industrial application areas, we are happy to share our knowledge in the form of sound advice. Our experienced specialists have a great sense of responsibility and are aware that sustainability is an important criterion for the future and therefore prefer long-term solutions. All our expansion joints are delivered with various European certificates and attestations. If required, our specialists can measure the expansion joints and supervise the assembly for you.
"The reliability of our expansion joints is an important criterion for operational safety and the livable environment around our industry."
PTFE EXPANSION JOINTS
As an alternative to rubber expansion joints , PTFE expansion joints are frequently a solution.
The most common PTFE expansion joints have 2, 3 or 5 waves and feature swivel flanges with movement limiters. In our standard range, PTFE expansion joints comes with DIN or ANSI flanges.
With the standard PTFE expansion joints with 2, 3 or 5 waves, the pressure resistance decreases rapidly as the temperature rises. Our product specialists will be happy to advise you on this.

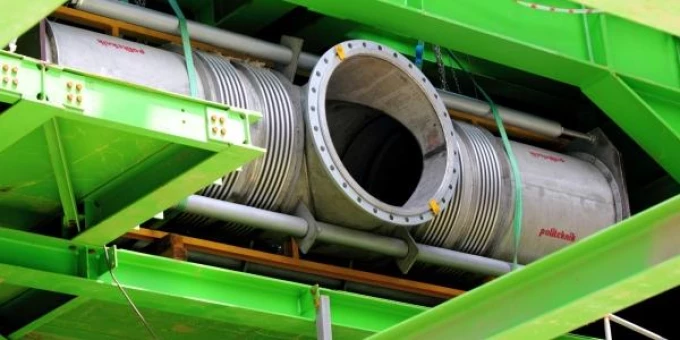

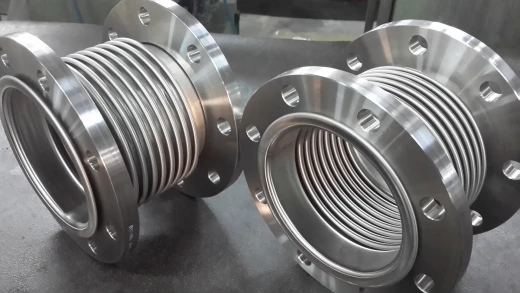

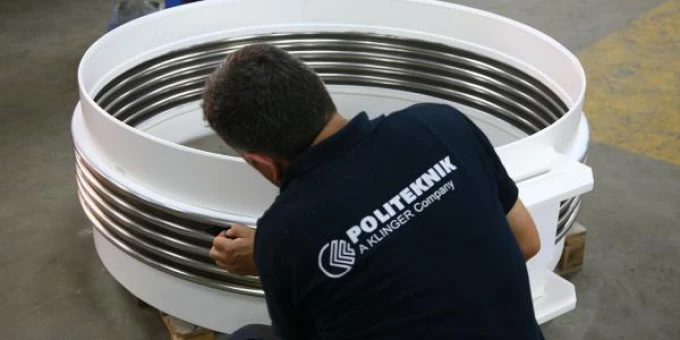

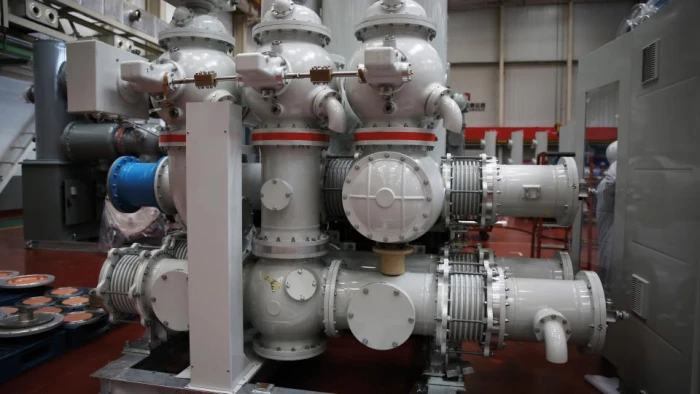

METAL EXPANSION JOINTS
Commonly used in the (petro)chemical industry, cogeneration plants and shipbuilding
The metal expansion joints from KLINGER are designed, manufactured and tested according to the criteria of the Expansion Joint Manufacturers Associations, or EJMA standardization for short. They are used for absorbing thermal expansion, reducing vibration and for stress-free arrangements in piping systems in a wide variety of process technologies.
Any questions? Our product specialists will be happy to help!
The most common types of metals expansion joints
Single expansion joints
Simple single-ball element designs to accommodate axial, lateral and angular movements.
Double expansion joints
Equipped with two ball elements and suitable for accommodating large axial and lateral movements, at lower pressure classes.

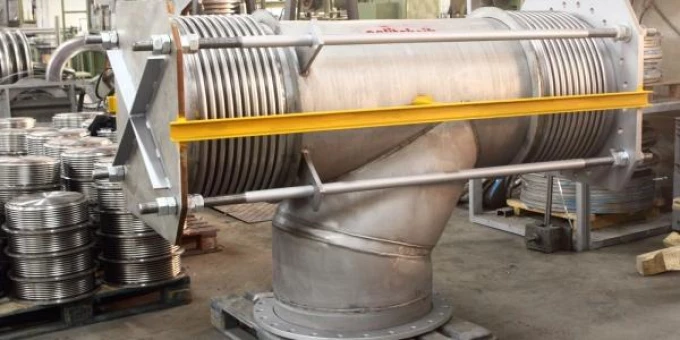

Expansion joints with tie rods
Version with one or two ball elements and at least two tie rods. The number of tie rods depends, among other things, on diameter and pressure class. This expansion joint is suitable for small lateral and axial movements.
Single expansion joints with hinges
Equipped with one or two ball elements and multiple hinges and suitable for accommodating small angular movements in one plane. A combination of two or three expansion joints can accommodate large axial movements.
Single or double expansion joints with cardan system
Expansion joints With one ball element and one cardan assembly. Suitable for accommodating small angular movements in any plane.

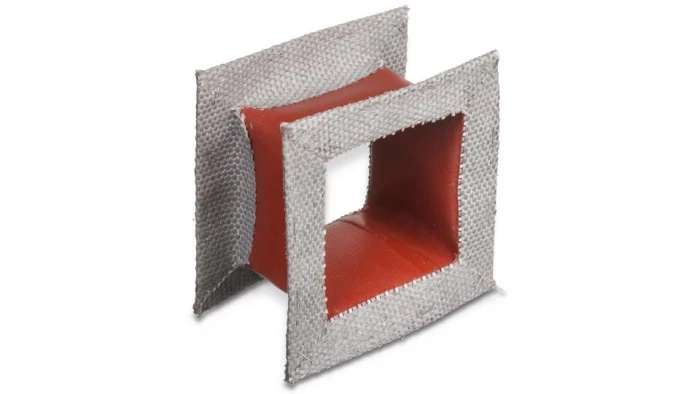

Fiber Expansion Joints
Commonly used in (hot) air and dust transport at lower pressures. The most common types.
U-Expension joint and Band-Expension joint
U- and band expansion joints are the most economical standard types for the most common applications in round and rectangular ducts
U-Expension joint for overpressure and vacuum
Especially for rectangular ducts, also for special corner design.
Multiple Form-Expansion joint
with intermediate flanges and tie rods Necessary for large, rectangular or round ducts, especially with large axial movements. The intermediate flanges can be equipped with tension bolts or special suspension.
Band-Expension joint for overpressure and vacuum
For rectangular expansion joints , the corners should be rounded with the comb height of the corner profile. Fabric expansion joints are always designed and produced according to customer specifications.
Any questions? Our product specialists will be happy to help!

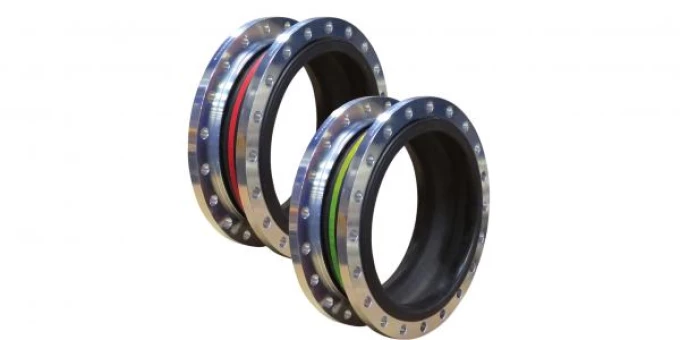

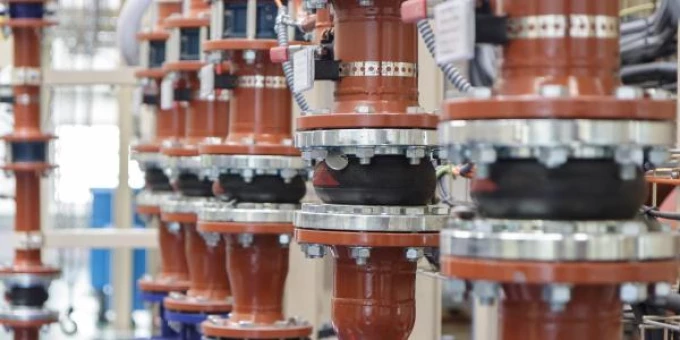

RUBBER EXPANSION JOINTS
Reducing vibration, expansion and noise
Easy to install rubber bellows expansion joints.
Versions
- With steel or stainless steel flanges in accordance with DIN or ANSI.
- Rubber bellows in EPDM, NBR, Hypalon and FPM, among others.
- With PTFE lining or vacuum support ring.
- With tie rods, hinges, flame cover and cover tube.
