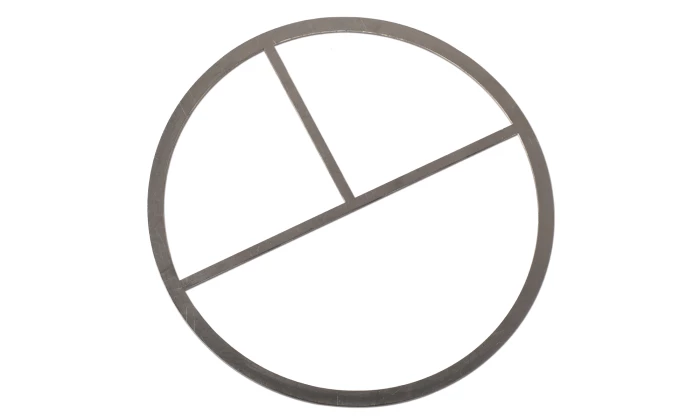

Flat carrier gasket
STAINLESS STEEL/GRAPHITE KLINGER® MAXIFLEX TYPE MM 108
Specifications
Suitable for steam, oil, hydrocarbons and many chemicals
Type: MM 108
Material: 316L/Graphite
Max. temperature: 450º-600ºC.
Max. pressure: 100 bar

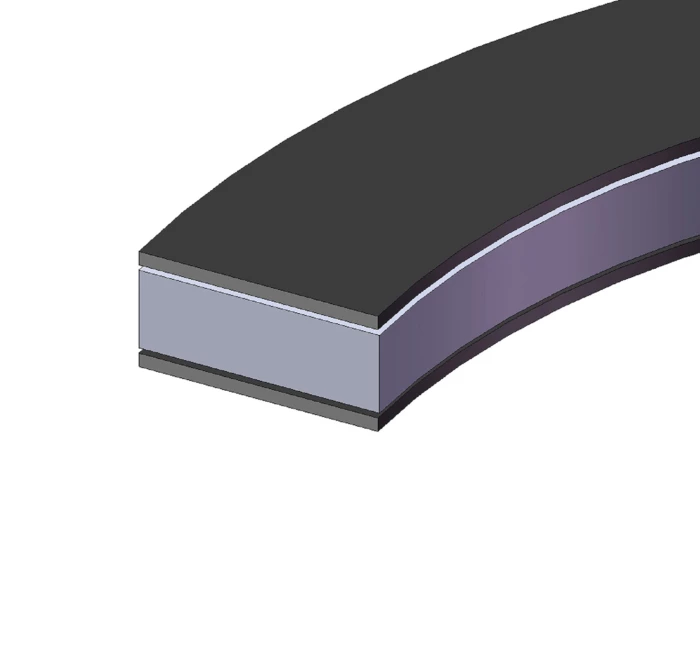

Standard metal thickness: 1 mm, alternatively 2 or 3 mm
Standard edition thickness: 2x 0.5 mm, alternatively 1 mm
Advantages
- Can be fabricated into an easily handled seal in any size.
- Ideally suited as a heat exchanger seal.
Technical Information
DIMENSIONS
These gaskets are manufactured to dimensional specifications into one piece, as a ring or square, possibly with dams and/or bolt holes.
MATERIALS
All common metals such as 316L, 304, 321, Cst, Monel, Titanium etc. are possible. Graphite is the most common run, PTFE and various rubber grades are possible.
