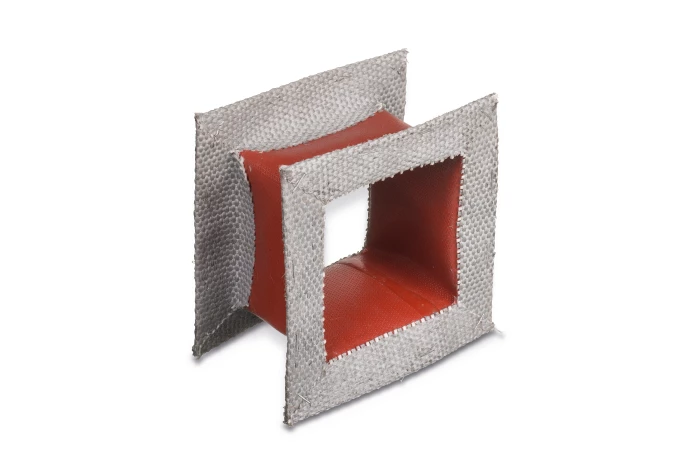

Fiber expansion joints

U-EXPENSION JOINT AND BAND-EXPENSION JOINT

U- and band expansion joints are the most economical standard types for the most common applications in round and rectangular ducts

U-EXPENSION JOINT FOR OVERPRESSURE AND VACUUM

In particular for rectangular ducts, also for special corner design.

MULTIPLE FORM COMPENSATOR WITH INTERMEDIATE FLANGES AND TIE RODS

Necessary for large, rectangular or round ducts, especially for large axial movements. The intermediate flanges can be equipped with tension bolts or special suspension.

Band-Expension joint for overpressure and vacuum

For rectangular expansion joints , the corners should be rounded with the crest height of the corner profile.

Fabric expansion joints are always designed and produced according to customer specification. Any questions? Our product specialists will be happy to help!
