Control valves Tomoe
header image

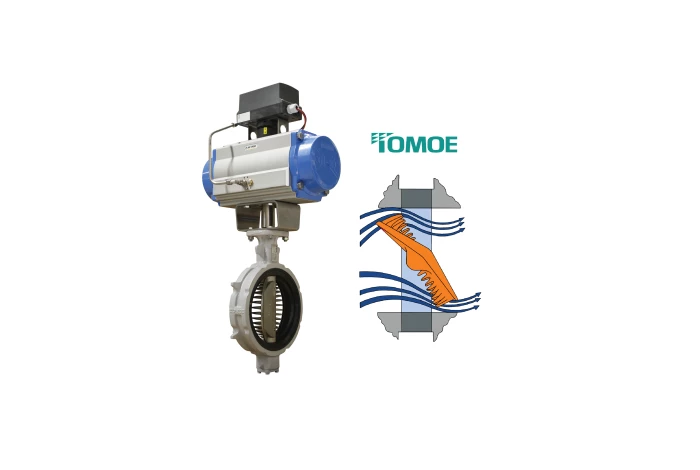

Tomoe butterfly valve designed for control applications.

TYPE KP-1057 AND KP-1058


Design: EN (DIN) and ASME
Pressure: PN10
Connections: wafer type



  • Valve blade with a wing profile and serrated edge.
  • An exceptionally large control range of 100:1.
  • No 'jump effect' upon opening, ensuring accurate control even in the lower range.
  • Equal percentage control characteristic.
  • Ideally suited for precisely controlling flow at low differential pressure.
  • Tomoe control valves are equipped with an extra-heavy-duty shaft.



TYPE KP-1057 WITH METAL SEAT; LEAK RATE ANSI/FCI 70-II CLASS 2.

Range: Kvs 60 tot 4.900
Sizes: DN50 tot DN400
Temperature: van -50°C tot +400°C





TYPE KP-1058 WITH RUBBER SEAT FOR REGULATING AND SEALING.


Range: Kvs 60 tot 8.600
Sizes: DN50 tot DN600
Temperature: van -20°C tot +120°C

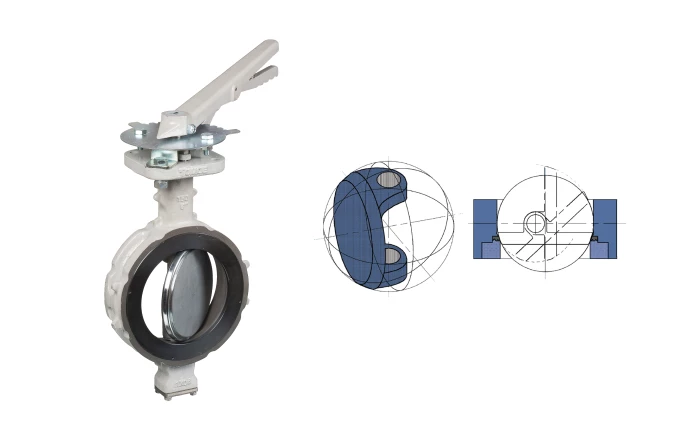

HIGH PERFORMANCE BUTTERFLY VALVES

TYPE KP-1063 AND KP-1064

The Tomoe butterfly valve with double eccentric design was developed as an alternative to ball valves, gate valves, and control valves. Its range of applications exceeds that of ordinary butterfly valves.



  • Compact design - low weight
  • House without dead space
  • Perfect spindle seal
  • Easy and cost-effective to automate.
Contact

For more information about our butterfly valves for control application, please contact:
