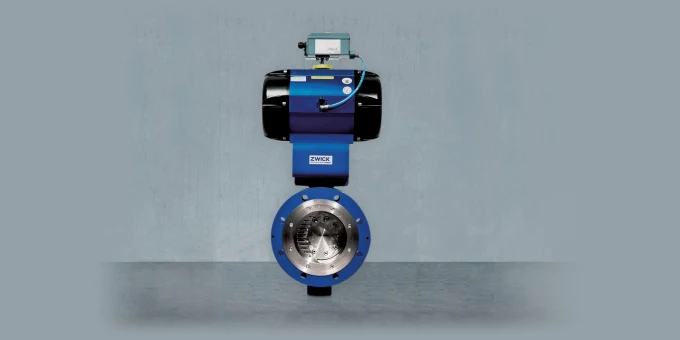

TRI-SHARK Butterfly valve - a true control valve that seals 100%

High standard control valves for non-standard conditions, the TRI-SHARK Control Valves

TRI-SHARK control valves are able to achieve an almost uniform percentage intrinsic characteristic curve, which significantly increases the control range. In addition, they offer great advantages in cavitation reduction and noise reduction, as well as dynamic torque reduction.

They are suitable for a wide range of applications, from cryogenic temperatures as low as -196°C to +815°C, including liquids, gases and steam.

Performance Benefits

DN 80 - DN 900, 3" - 36"*
Cash: 150 to 900
Carbon steel, stainless steel, & Exotic alloys
Metal-on-metal seating
Cryogenic up to 815°C.
Fireproof to API 607
Low torques
Stable Control
Light weight
Compact
Low Cost of Ownership
Spot replaceable trimming cartridges
Zero Leakage
Severe Service Opportunity

* = Larger sizes available

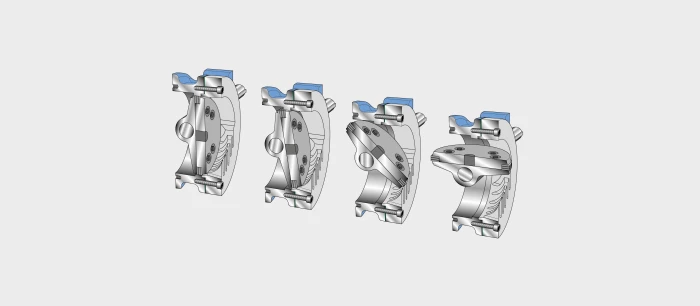

Tri-Shark checks from every angle

Tight seal
Low throughput
Medium throughput
Maximum throughput

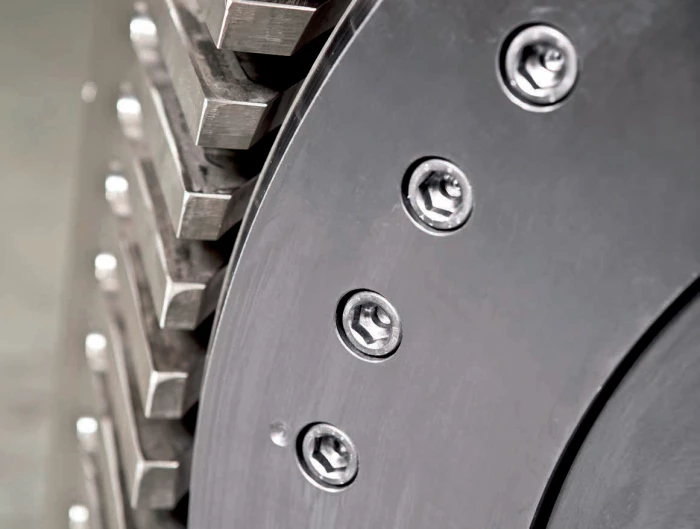

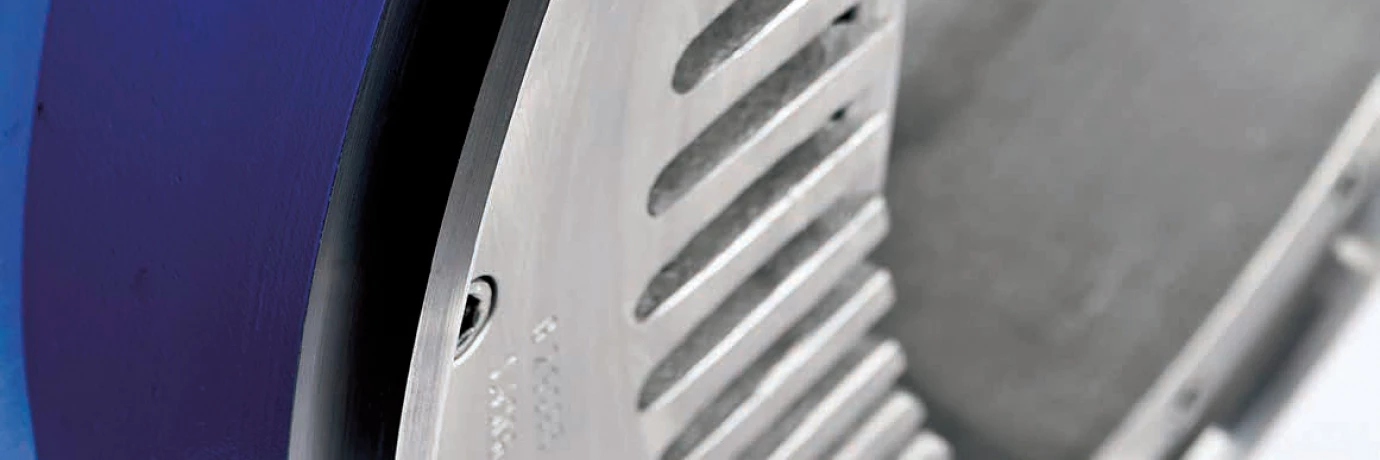

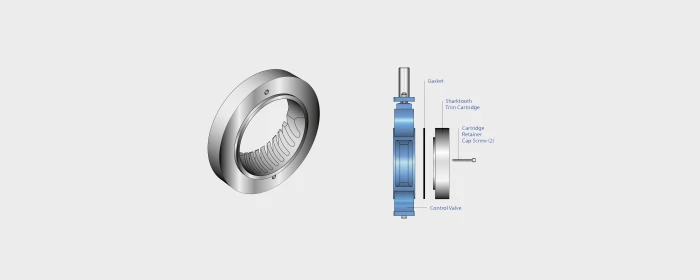

TRI-SHARK Throttling Trim Cartridge

The toothed "Throttling Trim Cartridge" is applied to make our Triple-off-Set Butterfly Valves into excellent throttling valves. Now only one variant control valve can be used for both on-off applications and also for controlling.
