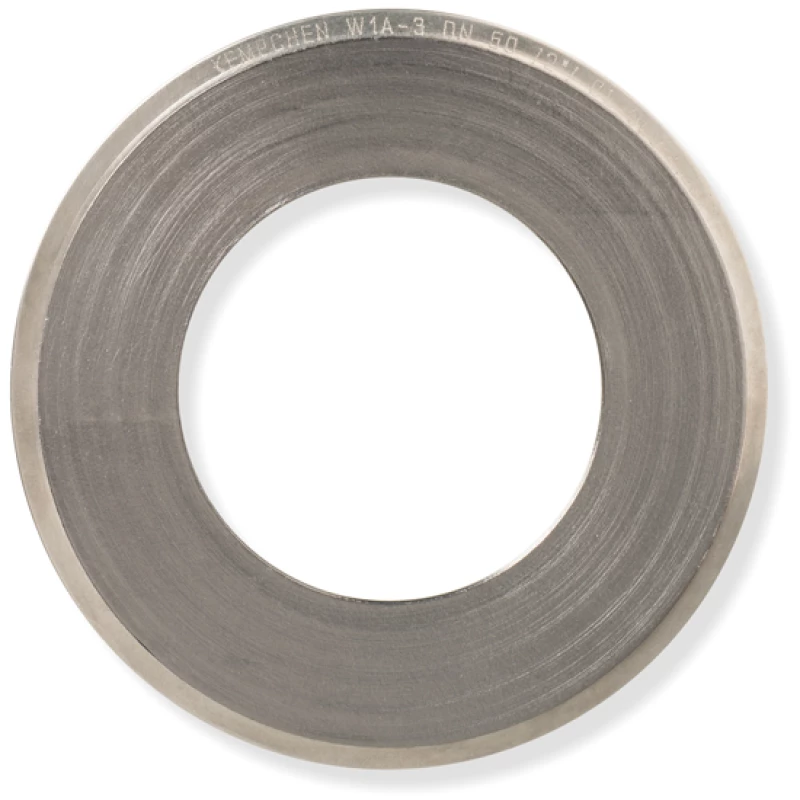

KLINGER Flex | W1A-3

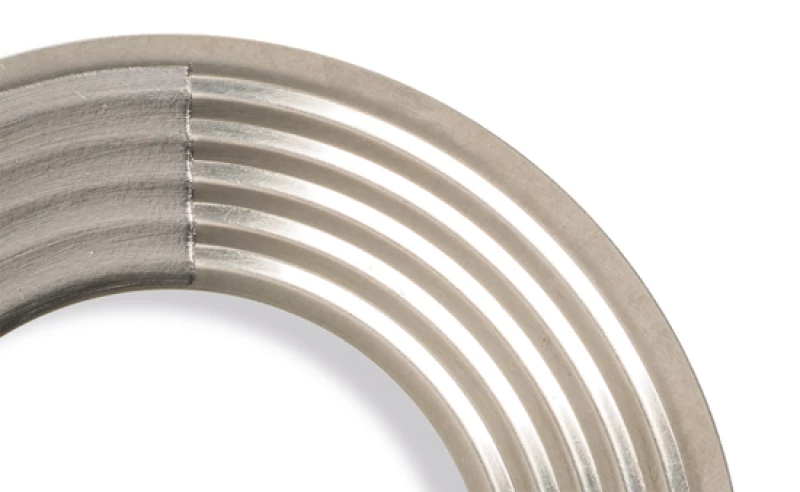

Stainless steel corrugated gaskets with graphite circulation
Suitable for: steam, oil, hydrocarbons and many chemicals
- This gasket can be used at both low and high medium pressures.
- Significantly more cost effective than spiral wound or comb profile gaskets.
- Meets the most stringent emission requirements (TA-luft).
Specifications
| Type | W1A-3 |
| Material | AISI 316Ti/Graphite |
| Max. temperature | 500ºC |
| Max. pressure | 160 bar |
| Approved/tested by | VDI2440 TA-luft |
| HOBT1 blow out test | |
| "Fire-safe" according to ISO 10497 and API 607 | |
| Dimensions | DIN and EN according to WS188 |
| ASME B16.5 according to WS189 |
CONTACT
For more information about our flange seals, please contact us at:
