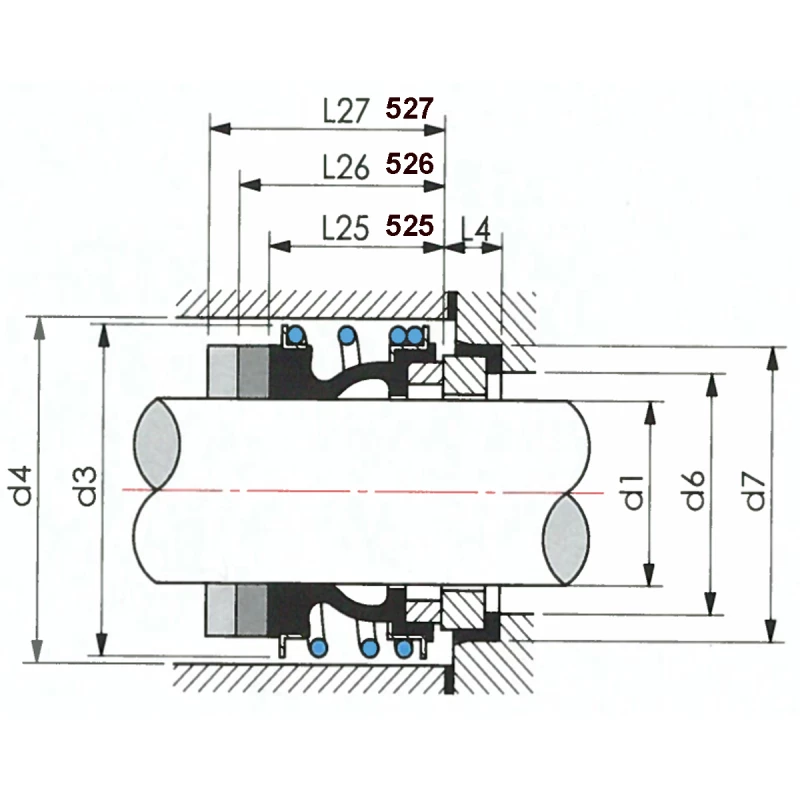

Ecoline 520 series with cup ring | 525 - 526 - 527
Sliding surfaces of carbon on silicon carbide with FPM elastomers
Suitable for: Universal water, oil corrosive and abrasive media
- rotation direction independent
- dirt-resistant
- DIN chamber stationary
- various sliding surface materials and elastomers available
Urgency or questions about availability?
Specifications
| Type | 525 - 526 - 527 |
| Material | AISI 316L |
| Slip ring rotating | carbon (B) or silicon carbide (U3) |
| Slip ring stationary | Silicon carbide (U3) |
| Elastomer | FPM(V) or EPDM |
|
|
|
| Max pressure* | 10 bar |
| Max temperature* | 180°C (120°C with EPDM) |
| Max speed* | 20 m/s |
|
|
|
|
* not at the same time
|
|
Contact
For more information about our mechanical seals (mechanical seals), please contact us at:
