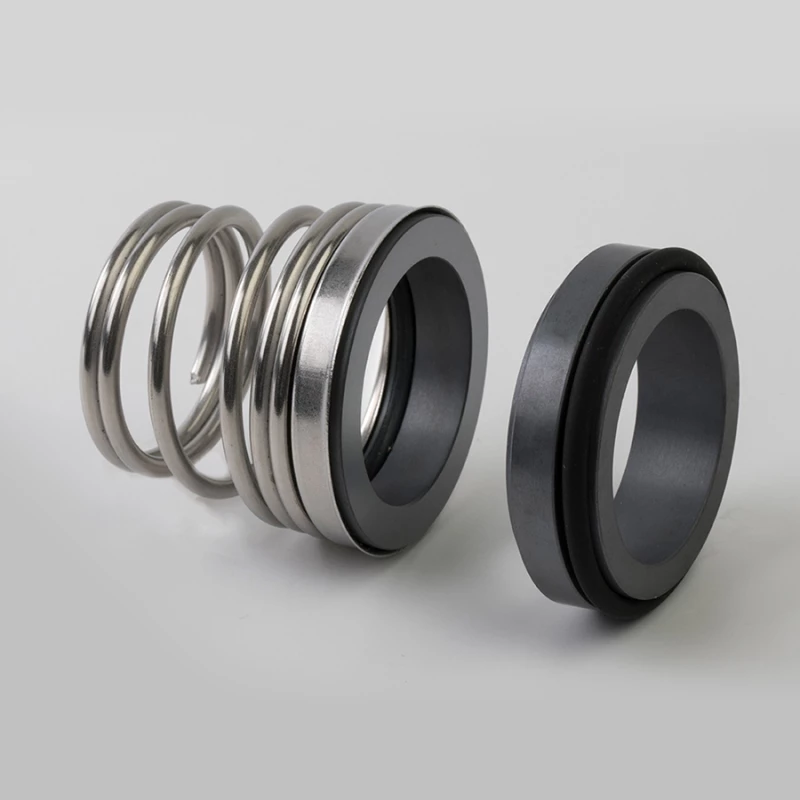

Ecoline 534 (DIN) and 535 | 534 - 535 BU3V
 en 535.webp_100x100.webp)

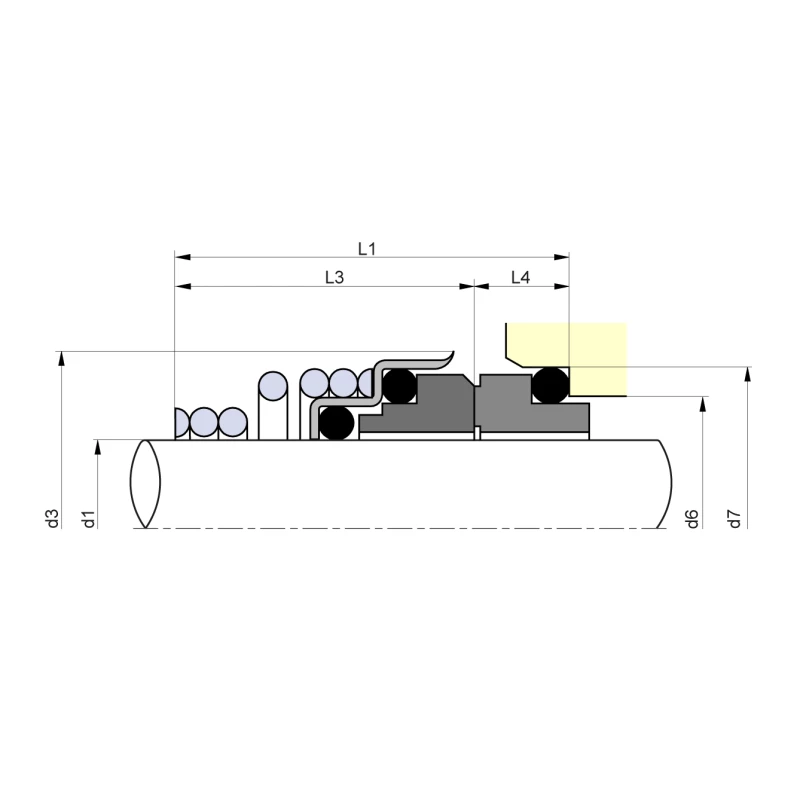

 en 535_Tekening.webp_100x100.webp)
Gliding surfaces Silicon carbide on carbon with FPM elastomers
Suitable for: all slightly corrosive and abrasive media
- This model has solid interchangeable slide rings, is extremely economical and is direction of rotation dependent.
Specifications
| Type | 534 - 535 BU3V |
| Material | AISI 316L |
| Slip ring rotating | SiC (U3) (alt ceramic (V)) |
| Slip ring stationary | carbon (B) (alt SiC (U3)) |
| Elastomer | FPM(V) (alt EPDM(E)) |
|
|
|
| Max. pressure | 10 bar |
| Max. temperature | 180°C |
| Max. speed | 10 m/s |
