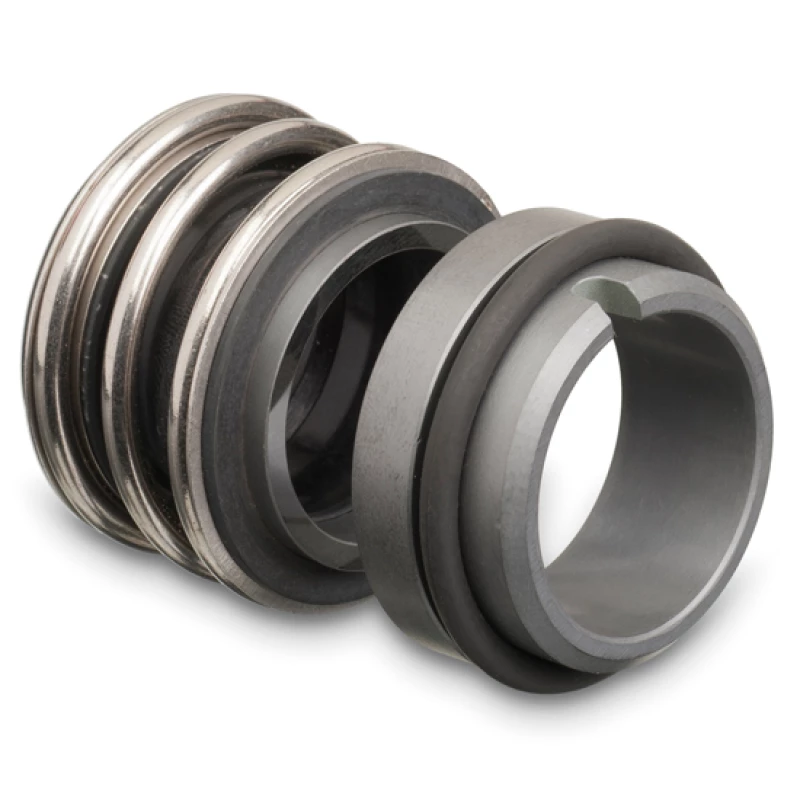

Ecoline (520 series) | 524 BU3V
Gliding surfaces carbon on silicon carbide with FPM elastomers
Suitable for: all slightly corrosive and abrasive media
- This rubber bellows seal is direction of rotation independent and features a DIN 24960 stationary ring.
Also available
- sliding surfaces Carbon/Ceramic and both Silicon carbide
- EPDM or Nitrile elastomers
- Installation lengths according to DIN L1k and L1N
Specifications
| Type | 524 BU3V |
| Material | AISI 316L |
| Slip ring rotating | Cabbage (B) |
| Slip ring stationary | Silicon carbide (U3) |
| Elastomer | FPM (V), option EPDM (E) or Nitrile (P) |
|
|
|
| Max. pressure | 10 bar |
| Max. temperature | 140ºC |
| Max. speed | 10 m/s |
