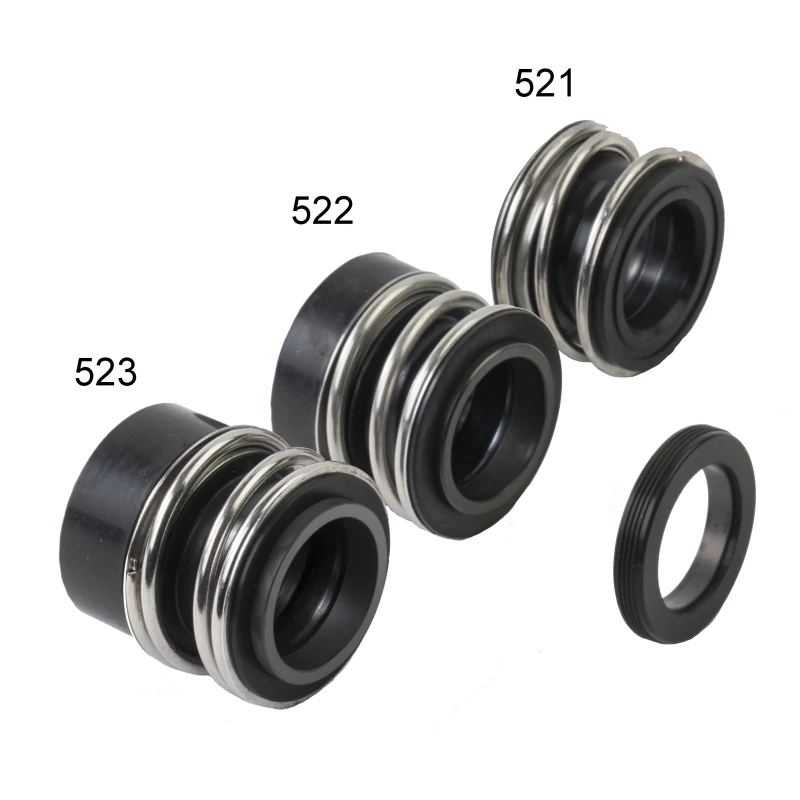

Ecoline 520 series with O-ring | 521 - 522 - 523

Ecoline 520 series with O-ring | 521 - 522 - 523

Ecoline 520 series with O-ring | 521 - 522 - 523

Sliding surfaces of carbon on silicon carbide with FPM elastomers

Suitable for: Universal water, oil corrosive and abrasive media

Direction of rotation independent
Dirt-resistant
DIN chamber stationary
Various sliding surface materials and elastomers available

Ecoline 520 series with O-ring | 521 - 522 - 523

Ecoline 520 series with O-ring | 521 - 522 - 523

Additional information

Latty OEM mechanical seals / OEM mechanical shaft seals

Urgency or questions about availability?

Mechanical Shaft Seals

or

Select a model:

Selecteer een uitvoering

Specifications

Type	521 - 522 - 523
Material	AISI 316L
Slip ring rotating	Carbon (B) or silicon carbide (U3)
Slip ring stationary	Silicon carbide (U3)
Elastomer	FPM (V) or EPDM (E)

*Max. pressure	10 bar
*Max. temperature	180ºC (EPDM 120ºC)
* Max speed	20 m/s

* Not at the same time
