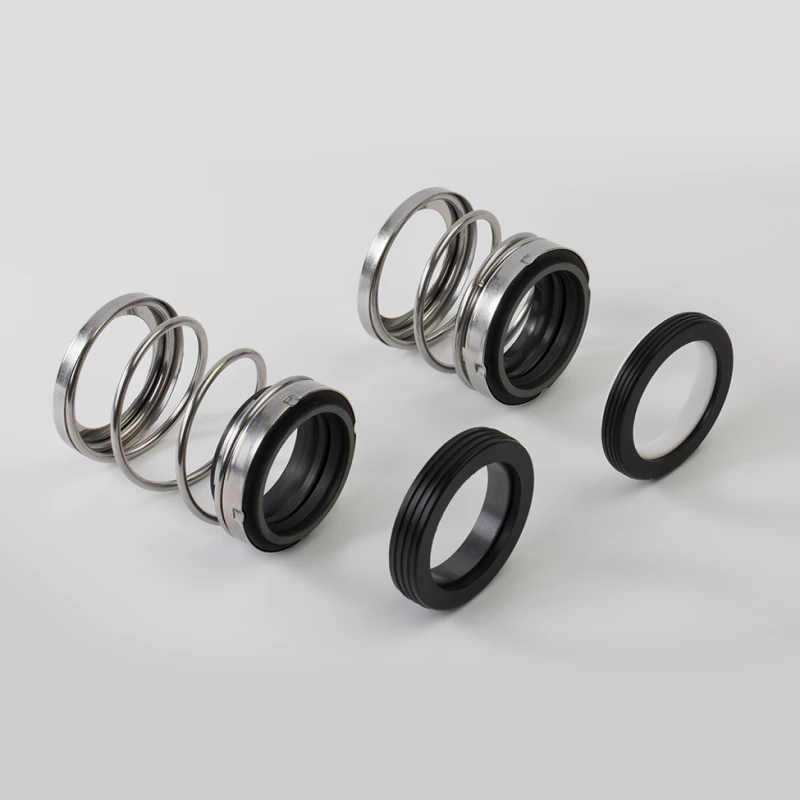

Ecoline 511 and 513 | 511 - 513 BU3V
Gliding surfaces Silicon carbide on carbon with FPM elastomers
Suitable for: all slightly corrosive and abrasive media

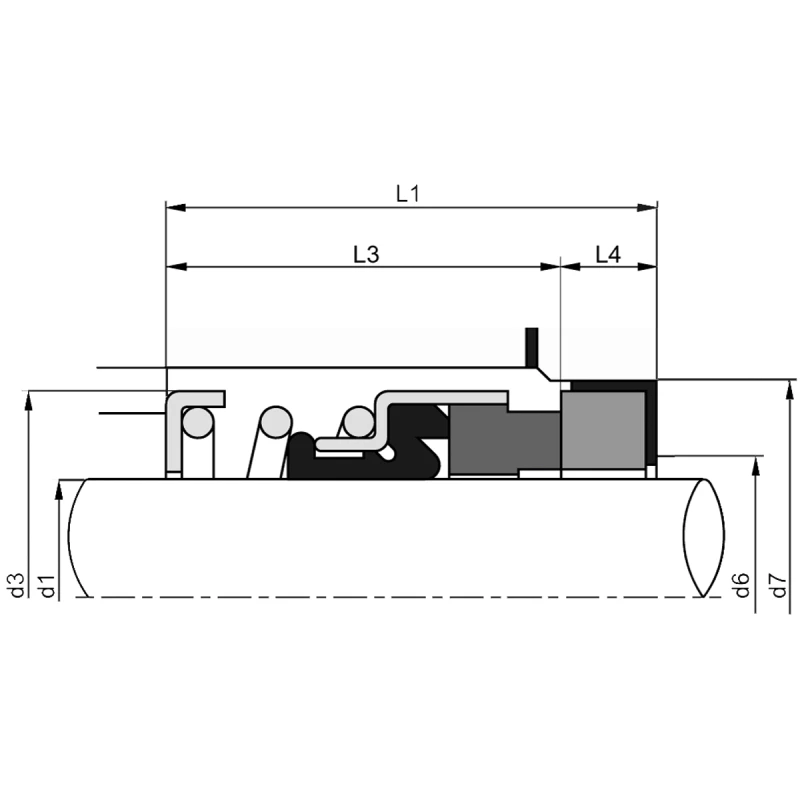

- This model has a long cylindrical spring with a rubber diaphragm seal, it is therefore less sensitive in terms of installation length, and without screwing is rotational direction independent.
Also available
- other (imperial) dimensions.
Specifications
| Type | 511 - 513 BU3V |
| Material | AISI 316L |
| Slip ring rotating | Carbon (B) (alt SiC (U3)) |
| Slip ring stationary | Silicon carbide (U3) (alt ceramic (V)) |
| Elastomer | FPM(V) (alt EPDM(E)) |
|
|
|
| Max. pressure | 10 bar |
| Max. temperature | 180°C |
| Max. speed | 10 m/s |
