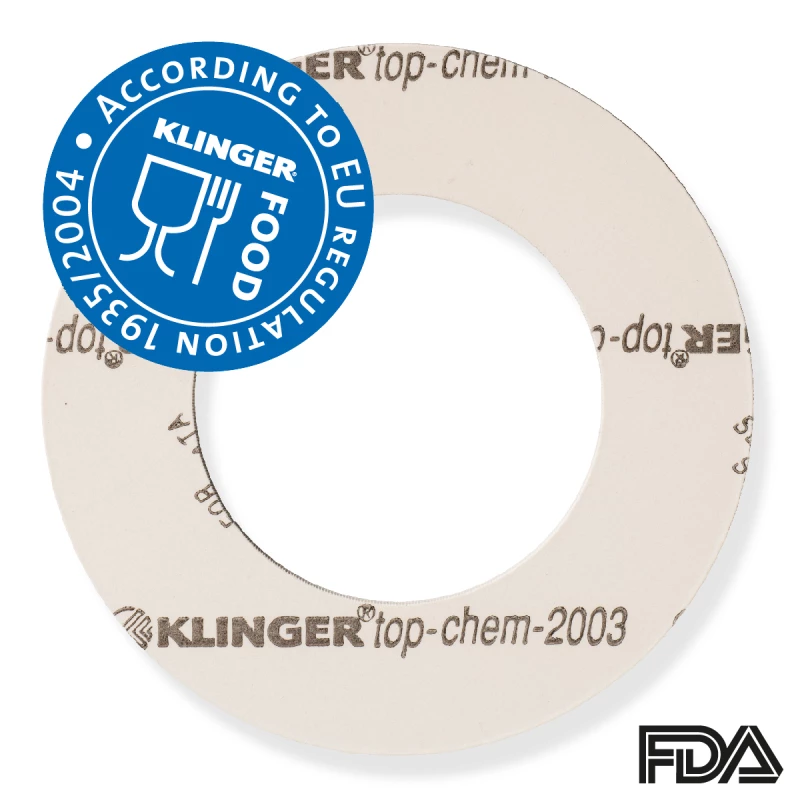

Food seals | KLINGER®top-chem-2003 FDA / EC 1935

Suitable for: chemicals in plastic and/or glass/ceramic piping systems, low temperatures

Does not contain any pigments.
This PTFE gasket is eminently universally applicable in the food and pharmaceutical industries, where no discoloration by the gasket material should take place.
Good adaptability to the flange surface.
Does not adhere to the flange.
Material does not age.
Available from our own production in plates, rings and windows.

Additional information

Chemical resistance

Type	KLINGER^®top-chem-2003 FDA / EC 1935
Material	PTFE reinforcing filled
Color	milky white on both sides,

Compressibility according to ASTM F36A	18%
Springback according to ASTM F36A	35%
Pressure resistance according to DIN 52913(2mm,150°C/30MPa)	13 N/mm²
Gas permeability according to DIN 28090-2	< 0,01 mg/sm

Sealing factors 2 mm thick leakage class 0.1 mg/sxm
ASTM Y	5 MPa
ASTM m	2,8
D0701 pgm;min 25ºC	13 MPa
D0701 pgm;max 25ºC	110 MPa
D0701 pgm;max 100ºC	28 MPa
D0701 pgm;max 200ºC	15 MPa
D0701 Cg	1,3

Pressure/Temperature Graph
Area 1	Normally with adequate surface pressure, it can be applied without problems.
Area 2	Get advice for critical applications.
Area 3	Seek advice.

DIN dimensions according to EN 1514-1
ANSI dimensions according to B16.21
