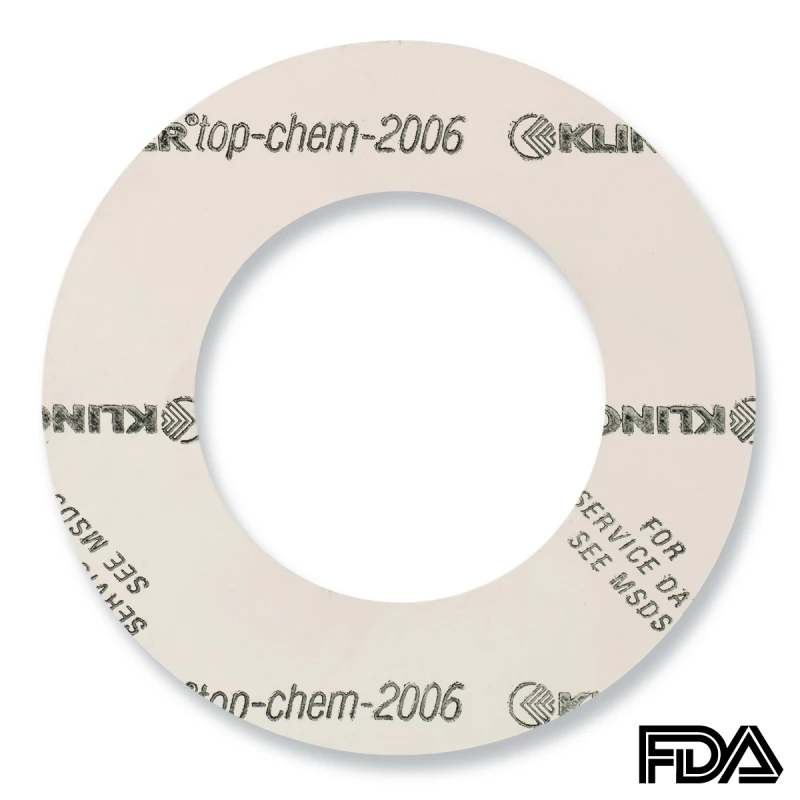

Food seals | KLINGER®top-chem-2006 FDA / EC 1935

Suitable for: chemicals, alkalis and salts such as NaOH, KOH

Does not contain any pigments.
This PTFE gasket is eminently universally applicable in the food and pharmaceutical industries, where no discoloration by the gasket material should take place.
Good adaptability to the flange surface.
Does not adhere to the flange.
Material does not age.
Available from our own production in plates, rings and windows.

Additional information

Chemical resistance

Type	KLINGER^®top-chem-2006 FDA / EC 1935
Material	PTFE reinforcing filled
Color	milky white on both sides

Compressibility according to ASTM F36A	4%
Springback according to ASTM F36A	40%
Pressure resistance according to DIN 52913	18 N/mm² (150ºC/30MPa)
Gas permeability according to DIN 28090-2	< 0,01 mg/sm

Sealing factors 2 mm thick leakage class 0.1 mg/sxm
ASTM Y	15 MPa
ASTM m	5

Pressure/Temperature Graph
Area 1	Normally with adequate surface pressure, it can be applied without problems.
Area 2	Get advice for critical applications.
Area 3	Seek advice.

DIN dimensions according to EN 1514-1
ANSI dimensions according to B16.21
