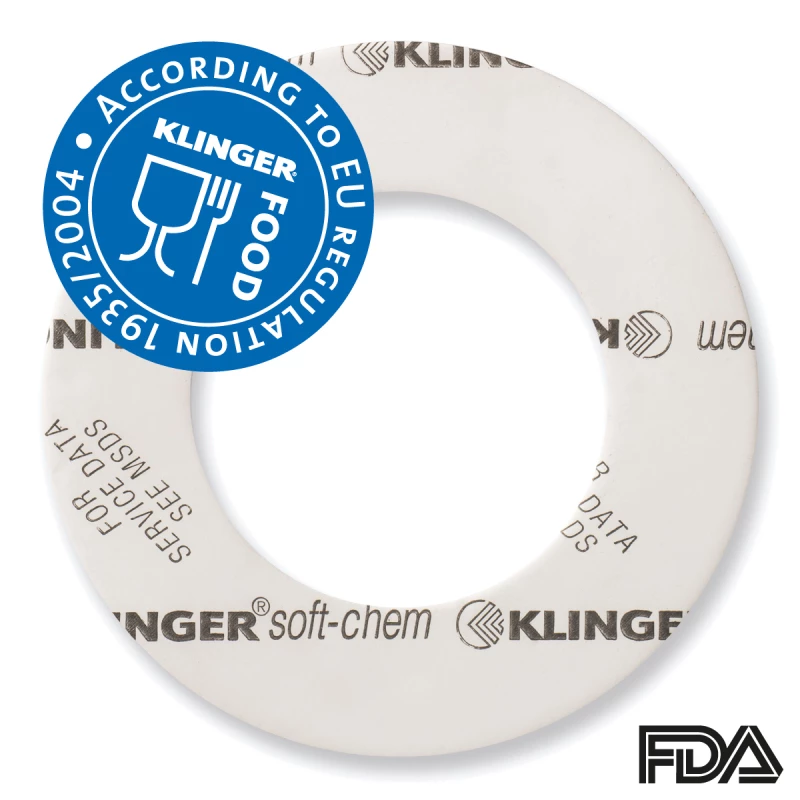

Food seals | KLINGER®soft-chem FDA / EC 1935

Suitable for: food and pharmaceutical industry

The production of these seals - in a designated clean room - uses equipment adapted specifically for the food and pharmaceutical industries.
All seals are packaged individually and marked for full traceability.
High compressibility.
Chemical resistance of PTFE.
Resistant to creep and cold flow.

Additional information

Chemical resistance

Type	KLINGER^®soft-chem FDA / EC 1935
Material	PTFE expanded
Color	white on both sides,

Compressibility according to ASTM F36A	55%
Springback according to ASTM F36A	15%
Gas permeability according to DIN 28090	< 0,01 mg/sm

Sealing factors 1.5 mm thick leakage class 0.1 mg/sxm
ASTM Y	5 MPa
ASTM m	2

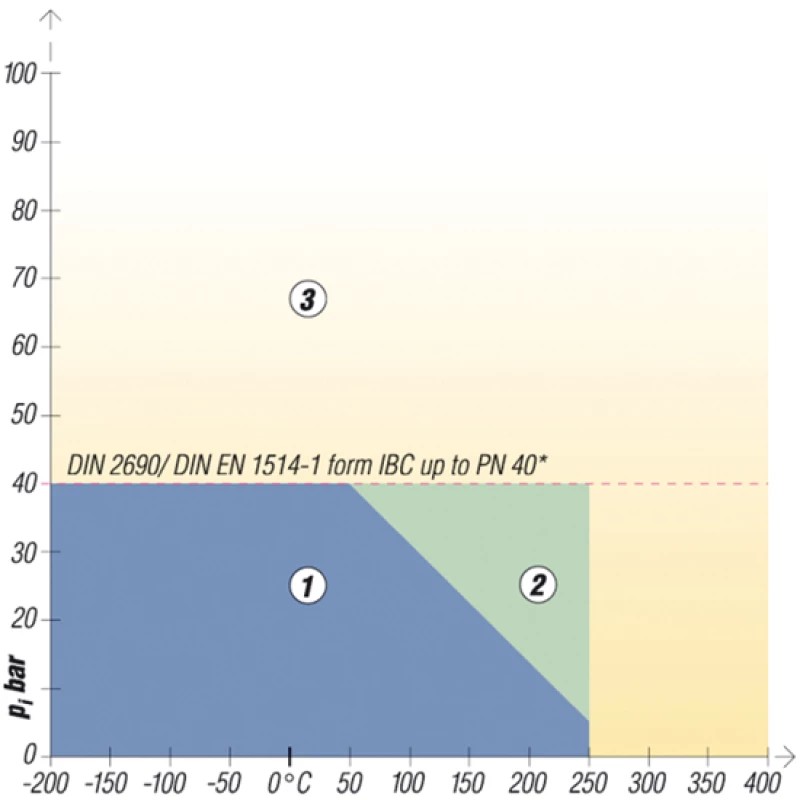

Pressure/Temperature Graph
Area 1	Normally with adequate surface pressure, it can be applied without problems.
Area 2	Get advice for critical applications.
Area 3	Seek advice.
*	Maximum temperature for food-related applications

DIN dimensions according to EN 1514-1
ANSI dimensions according to B16.21
