Graphite seal | KLINGER®top-graph-2000

Suitable for: universal in oil, hydrocarbons, gases and up to medium pressure steam

Properties similar to graphite, with the workability and tractability of a fiber gasket.
High flow resistance.
Wide deployment area.
Does not adhere to the flange.

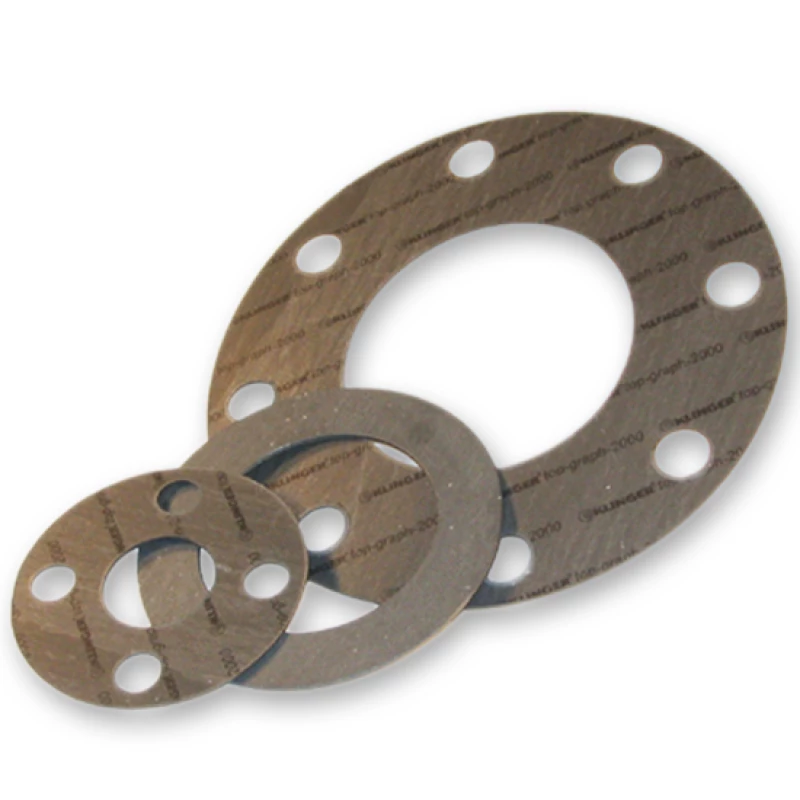

Available from our own production in plates, rings and windows.

Additional information

Graphite seals

Type	KLINGER^®top-graph-2000
Material	Graphite reinforcing filled with carbon fibers and NBR.
Color	black on both sides

Compressibility according to ASTM F36A	10%
Springback according to ASTM F36A	60%
Pressure resistance according to DIN 52913(1.5mm 300ºC)	32 N/mm²
Gas permeability according to DIN 28090-2	< 0,05 mg/s.m.

Approved/tested by	BAM (oxygen gaseous to 130 bar, 125 ºC)
	KTW
	BS 7531 Grade AX
	DIN DVGW
	TA Luft (clean air) acc VDI2440
	Germanischer Lloyd
	RoHS cert.
	EC / EWG cert.
	Reach statement
	SVHC list statement

Sealing factors 2 mm thick leakage class 0.1 mg/sxm
ASTM Y	25 MPa
ASTM m	4

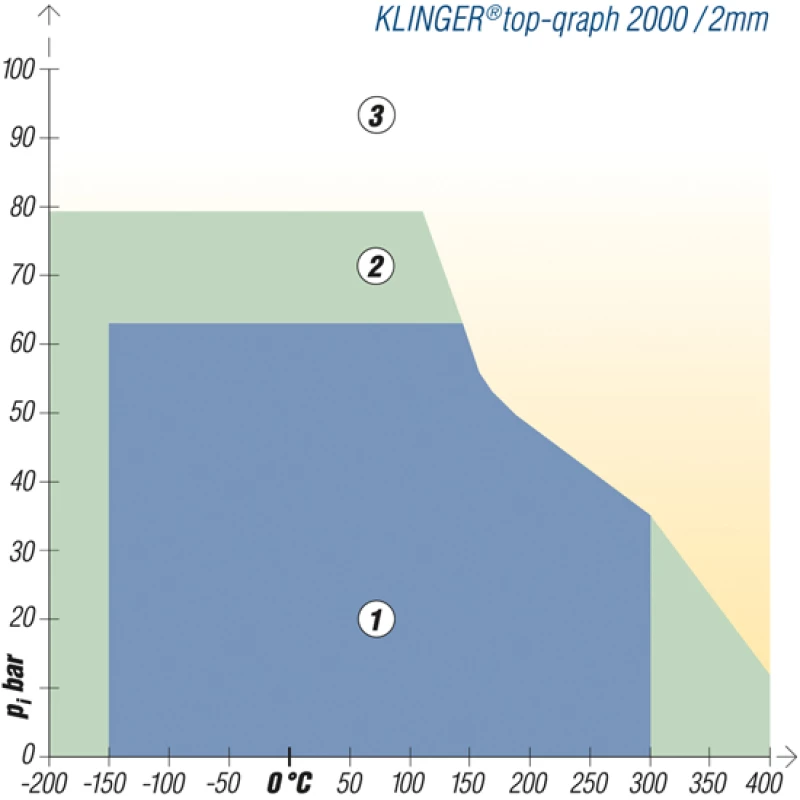

Pressure/Temperature Graph
Area 1	Normally with adequate surface pressure, it can be applied without problems.
Area 2	Get advice for critical applications.
Area 3	Seek advice.

DIN dimensions according to EN 1514-1
ANSI dimensions according to B16.21
