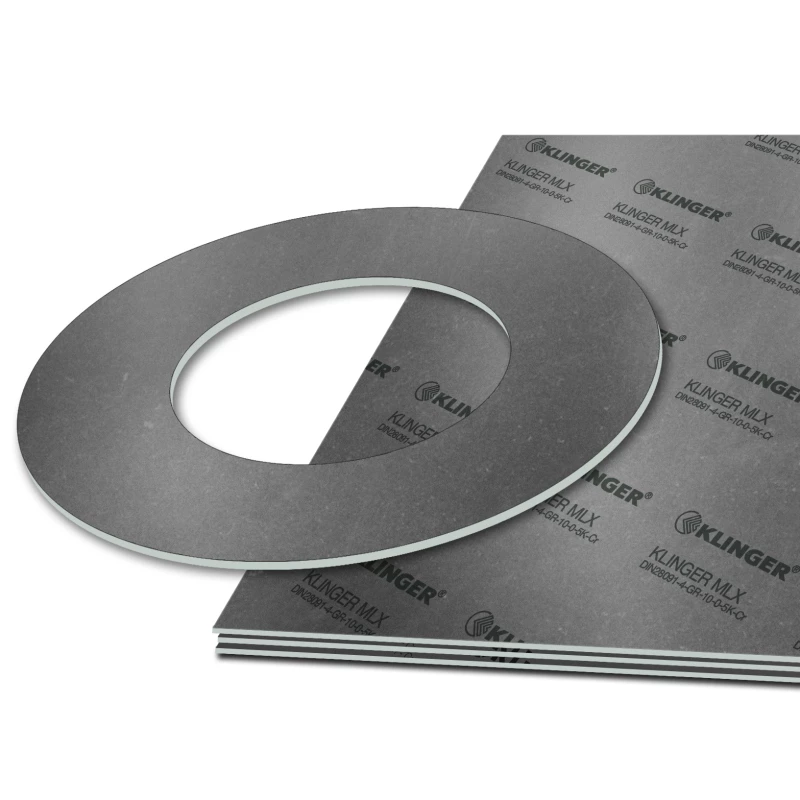

Graphite seal | KLINGER®MLX
Graphite with multiple stainless steel inserts
Suitable for: extreme conditions, especially for high-pressure applications, high temperatures and high compressive stresses.
- Very high compressibility and temperature resistance.
- High leak tightness at lower bolt forces.
- Features "Anti-stick" coating.
- Multiple stainless steel inserts.

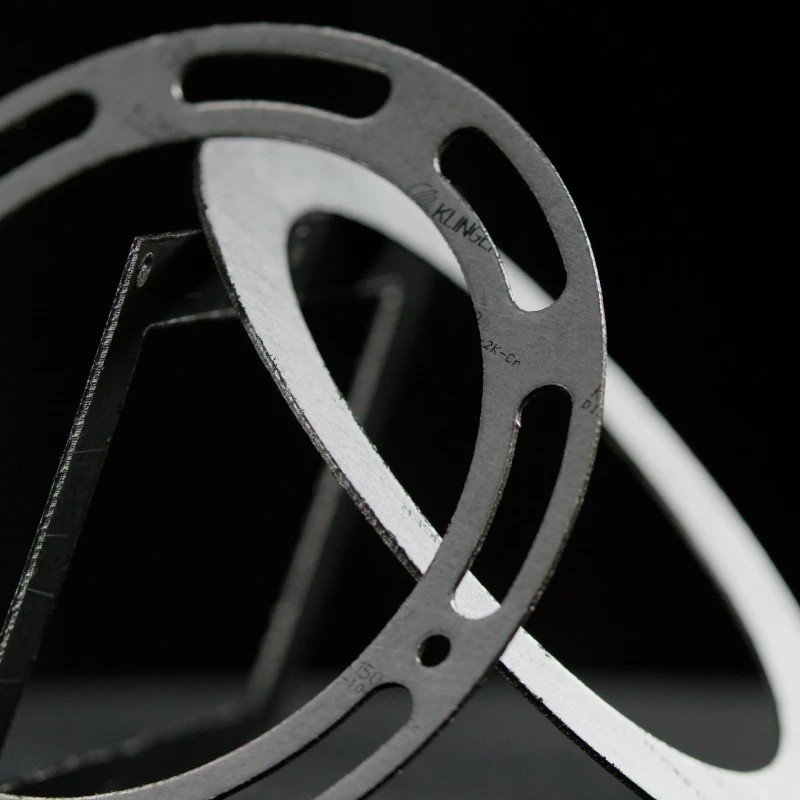

- Available from our own production in plates, rings and windows.
- Easy to cut yourself.
Specifications
| Type | KLINGER®MLX |
| Material | By special process, several layers (0.5 mm) of expanded 99.85% pure graphite and 0.05 mm stainless steel insert are joined together without using glue. F.z.v. "Anti-stick" coating. A special impregnation provides improved sealing performance and excellent machinability. |
| Color | black/grey |
|
|
|
| Density | 1.1 g/cm3 |
| Compressibility according to ASTM F36A | 30-50% |
| Springback according to ASTM F36A | 10-25% |
| Pressure resistance according to DIN 52913(2mm) | > 45 MPa |
| Gas permeability according to DIN 28090-2 | <0,10 mg/s.m. |
|
|
|
| Chemical resistance | see resistance list |
|
|
|
| Approved/tested by | DVGW |
| "Fire-safe" according to DIN EN ISO 10497 | |
| ASTM WK26064 Blow-out | |
|
|
|
|

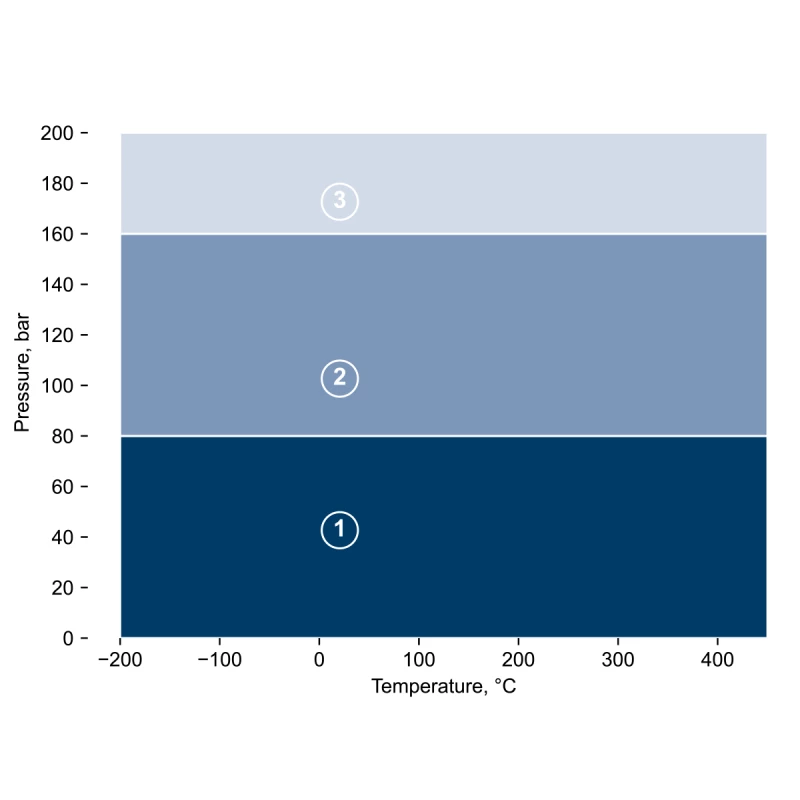

Pressure/Temperature Graph
|
|
| Area 1 | Normally with adequate surface pressure, it can be applied without problems. |
| Area 2 | Get advice for critical applications. |
| Area 3 | Seek advice. |
|
|
|
|
DIN dimensions according to EN 1514-1
|
|
|
ANSI dimensions according to B16.21
|
|
Contact
For more information about our graphite gaskets, please contact us at:
