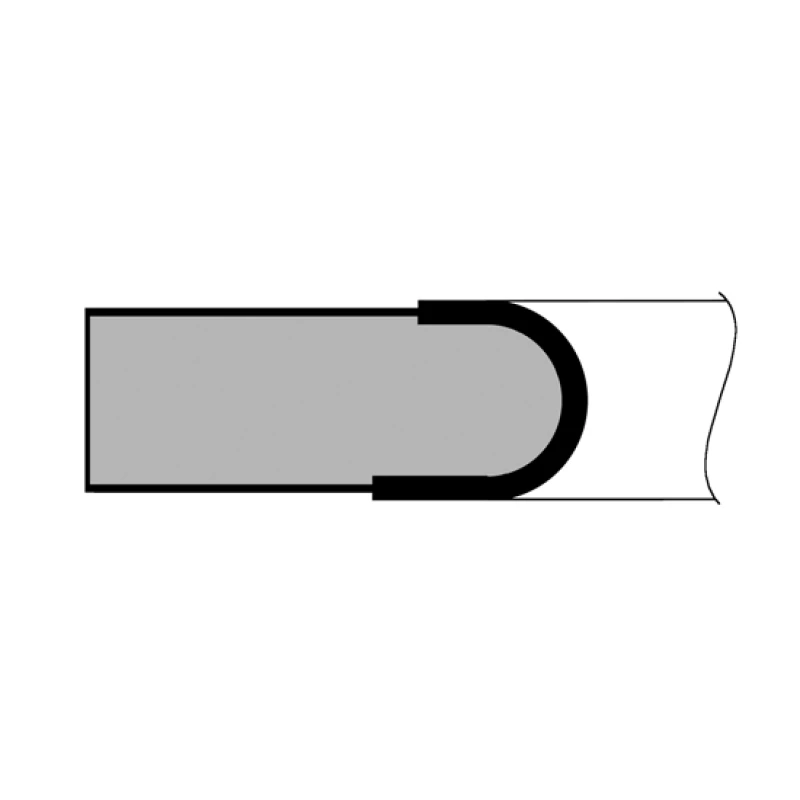

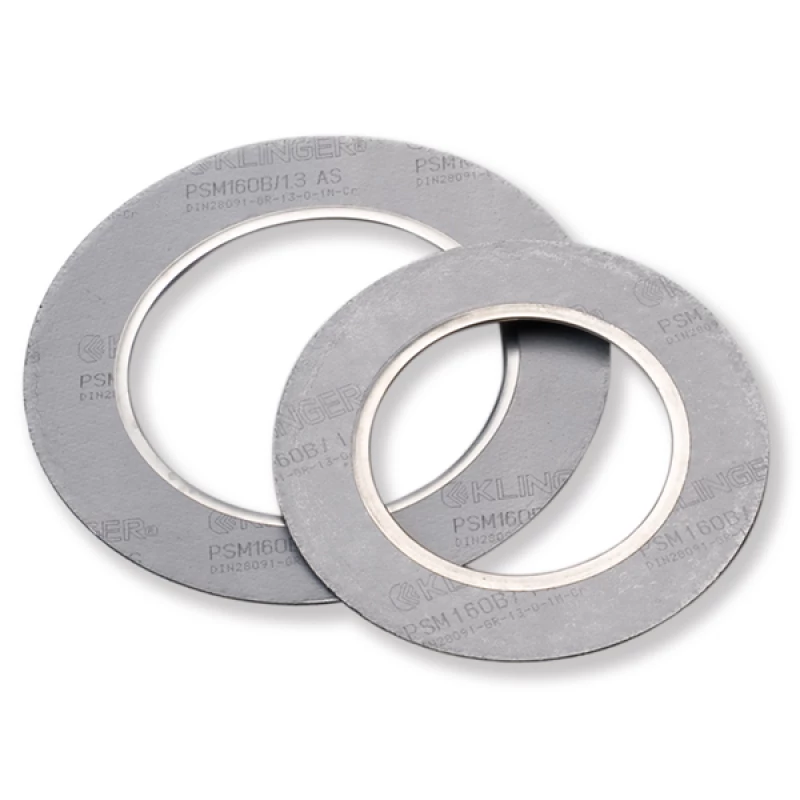

Graphite seal | KLINGER PSM B/AS with flare
Graphite with stainless steel insert v.z.v. "Anti-Stick" coating and flail
Suitable for: steam, hot water and liquid plastics
- This gasket has a very high temperature resistance due to the graphite.
- Features an "Anti-Stick" coating.
- The graphite is separated from the medium by the inner jacket.
- Available as DIN/ANSI and non-standard ring sizes.
Specifications
| Type | KLINGER PSM B/AS with flare |
| Material | graphite with perforated AISI 316 insert, anti-stick coating and AISI 316 Ti or Monelördel |
| Color | black/grey |
|
|
|
| Compressibility according to ASTM F36A | 35% |
| Springback according to ASTM F36A | 20% |

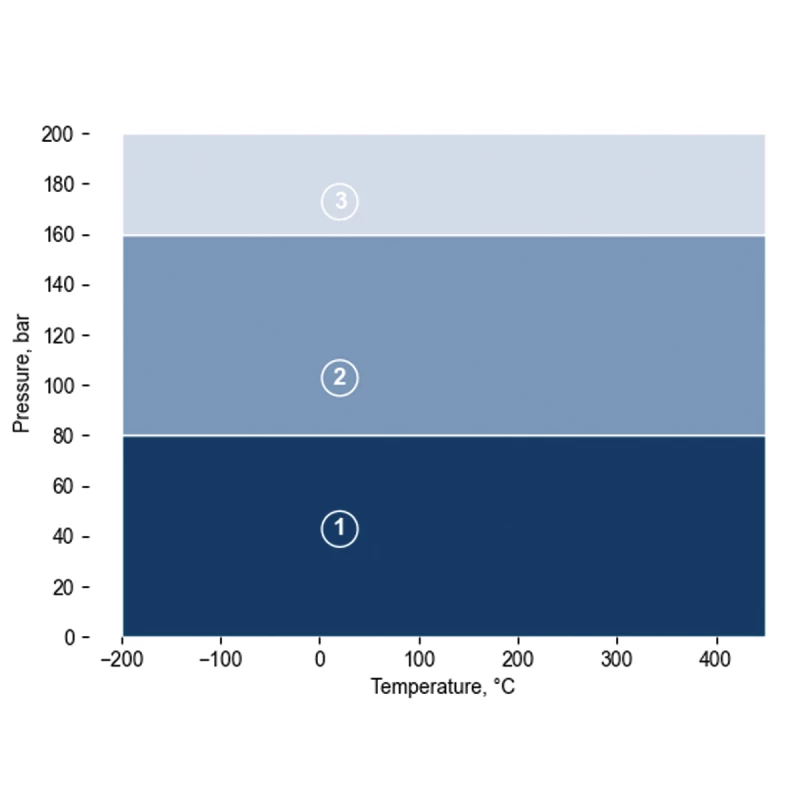

| Pressure resistance according to DIN 52913(2mm) | 48 N/mm² |
| Gas permeability according to DIN 28090-2 | < 0,05 mg/s.m. |
|
|
|
| Chemical resistance | see resistance list. |
|
|
|
|
DIN dimensions according to EN 1514-1
|
|
|
ANSI dimensions according to B16.21
|
|
Contact
For more information about our graphite gaskets, please contact us at:
