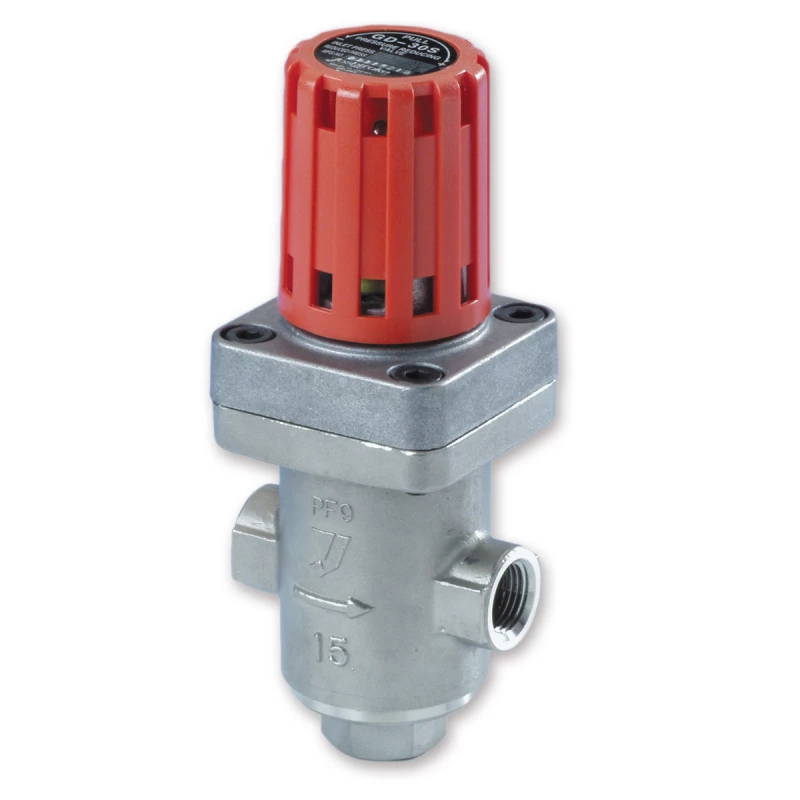

Stainless steel pressure reducer | GD-30S
with integrated filter
Suitable for: steam, air and other gases
- Direct acting regulator.
- Integrated strainer.
- Easy to clean/repair.
- Large, easily adjustable cap.
Urgency or questions about availability?
Specifications
| Type | GD-30S |
| Material | RVS 304 |
| Valve + Seat | RVS 304 |
| Filter | STAINLESS STEEL |
| Bellows | RVS 316L |
| Control knob | heat-resistant plastic |
| Min. pressure differential | 0.5 bar |
| Max pressure ratio | 101 |
| Leakage | <0,1% |
| Control accuracy | +/- 10% |
| Working pressure max. | 17 bar |
|
|
|
| Connection | BSPT |
|
|
|
| Temperature | maximum 220ºC |
|
|
|
| Also available | lower pressure range (0.2-1 bar) |
| other connections | |
