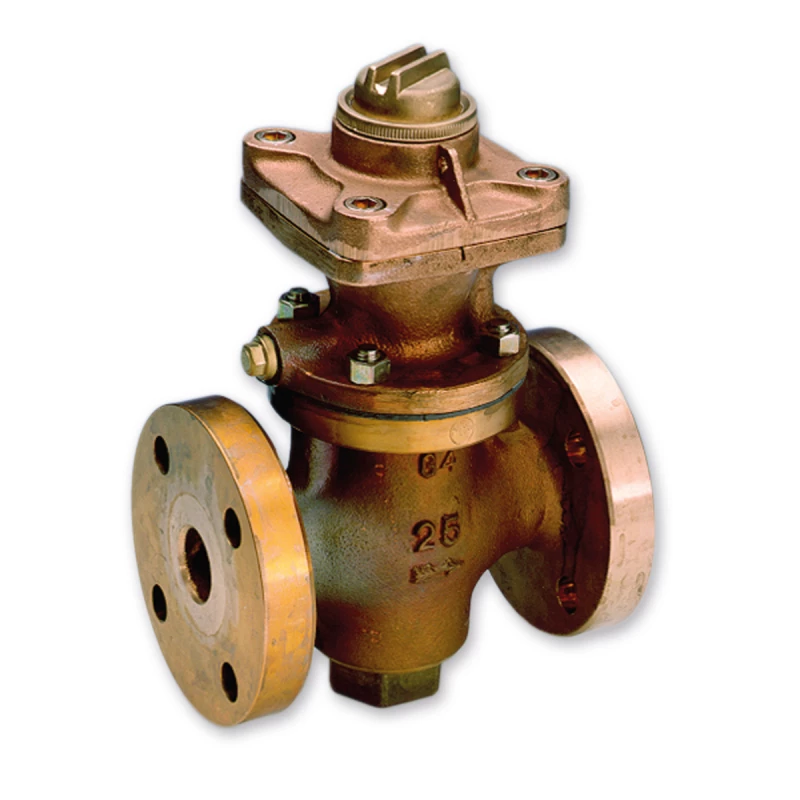

Bronze pressure reducer G 4 | KP-2043
Flange connection PN 40
Suitable for: steam, air and non-hazardous gases
- Small size.
- Constant output pressure.
- Very large capacities relative to size.
- Independent operation, no auxiliary energy required.
- Low maintenance.
Urgency or questions about availability?
Also available
- with female thread connection
To be specified when ordering
- medium
- inlet pressure and reduced pressure
- capacity
Specifications
| Type | KP-2043 |
| Material | Bronze |
| Pressure class | PN 40 |
| Valve + Seat | STAINLESS STEEL * |
| Piston | Brass |
| Piston Rings | Phosphor bronze |
| Seal | Asbestos-free |
|
|
|
| Face to face | EN558-1 series 1 |
| Connection | EN1092-3 |
|
|
|
| Temperature | maximum 260ºC at 17 bar (steam) |
| maximum 120ºC at 35 bar (air) | |
|
|
|
|
* For air and gas valves fitted with PTFE seal.
|
|
