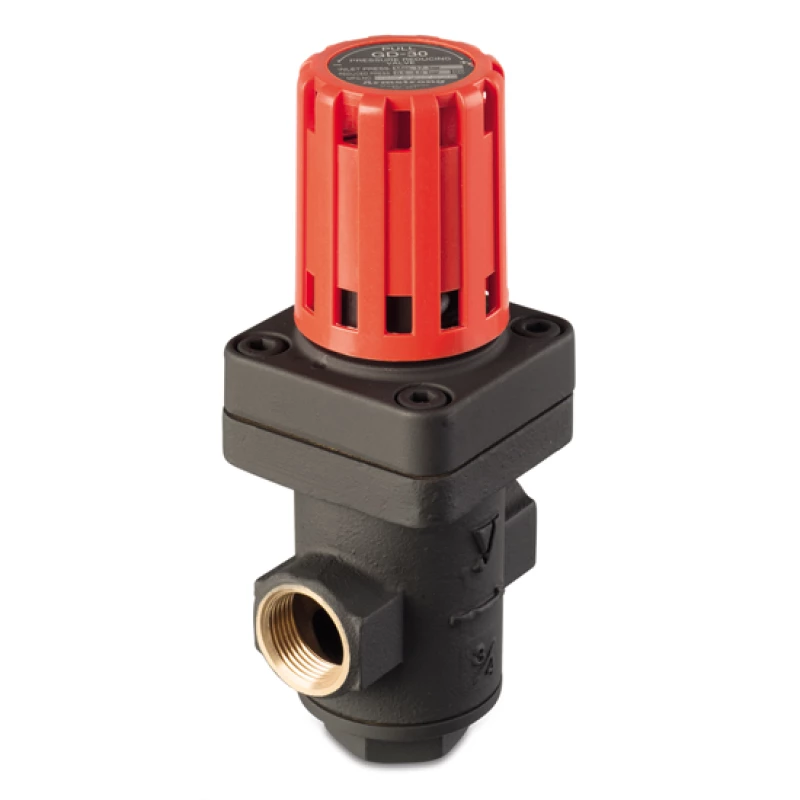

Bronze pressure reducer - GD-30

Bronze pressure reducer | GD-30

Bronze pressure reducer | GD-30
Bronze pressure reducer | GD-30
Bronze pressure reducer | GD-30
gallery slider left
gallery slider right

with integrated filter

Suitable for: steam, air and non-corrosive gases

  • Direct acting regulator.
  • Integrated strainer.
  • Easy to clean/repair.
  • Large, easily adjustable cap.
Specifications
Bronze pressure reducer | GD-30
Bronze pressure reducer | GD-30
Bronze pressure reducer | GD-30
Next series

Specifications

Type GD-30
Material Bronze
Valve + Seat STAINLESS STEEL AISI 420 + AISI 304
Filter STAINLESS STEEL
Bellows Phosphor bronze
Control knob heat-resistant plastic
Min. pressure differential 0.5 bar
Max pressure ratio 101
Leakage <0,1%
Control accuracy +/- 10%
Working pressure max. 17 bar
Connection BSPT thread or PN 16 flanges
Temperature maximum 210ºC
Also available lower pressure range (0.2-1 bar)
Contact

For more information about our pressure reducing devices, temperature regulators, and safety valves, please contact us at:
