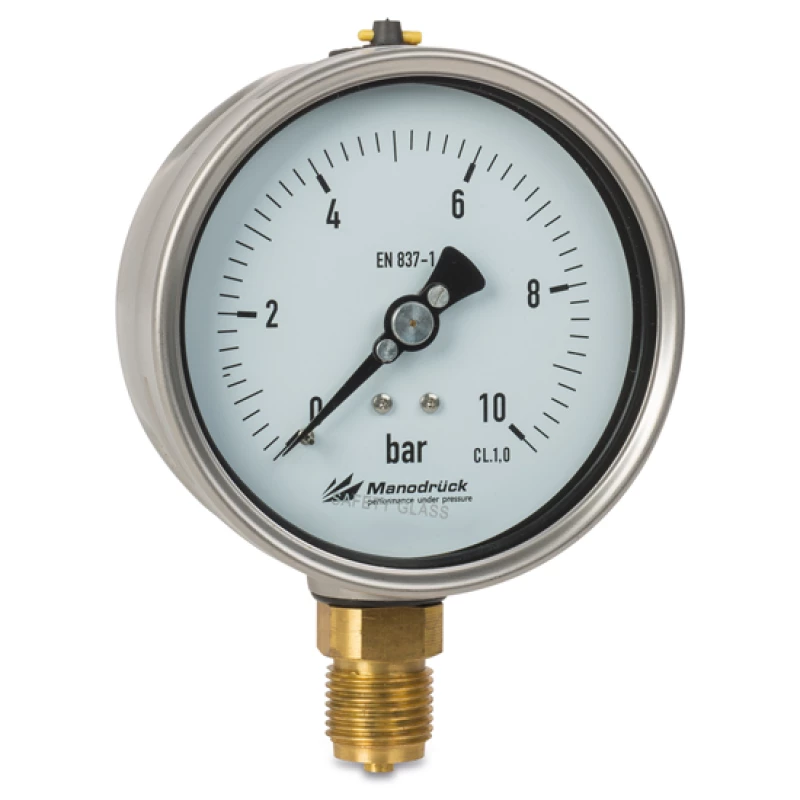

Stainless steel / brass bourdon type pressure gauge | KP-466 / KP-4661
cabinet diameter Ø 100 mm, G 1/2" bottom connection
Suitable for: industrial applications
- Type KP-4661 glycerin filled.
Also available
- Other scale layouts, measuring ranges and different connections
- capillary and separation diaphragm
- different filling
Specifications
| Type | KP-466 / KP-4661 |
| Material | STAINLESS STEEL |
| Bourdon type | Phosphor-Bronze |
| Display | Plastic |
|
|
|
| cabinet diameter | Ø100 mm |
| Threaded connection | G 1/2" |
|
|
|
| Measuring range | From -1/+15 to 0/+1600 bar |
| Accuracy | Class 1.0 |
| Protection class | IP 65 according to NF EN 60529 |
|
|
|
| Temperature | -20 to 60ºC |
| Medium | up to 100ºC, for higher temperatures a |
| syphon to be applied | |
Contact
For more information about our pressure gauges and accessories, please contact us at:
