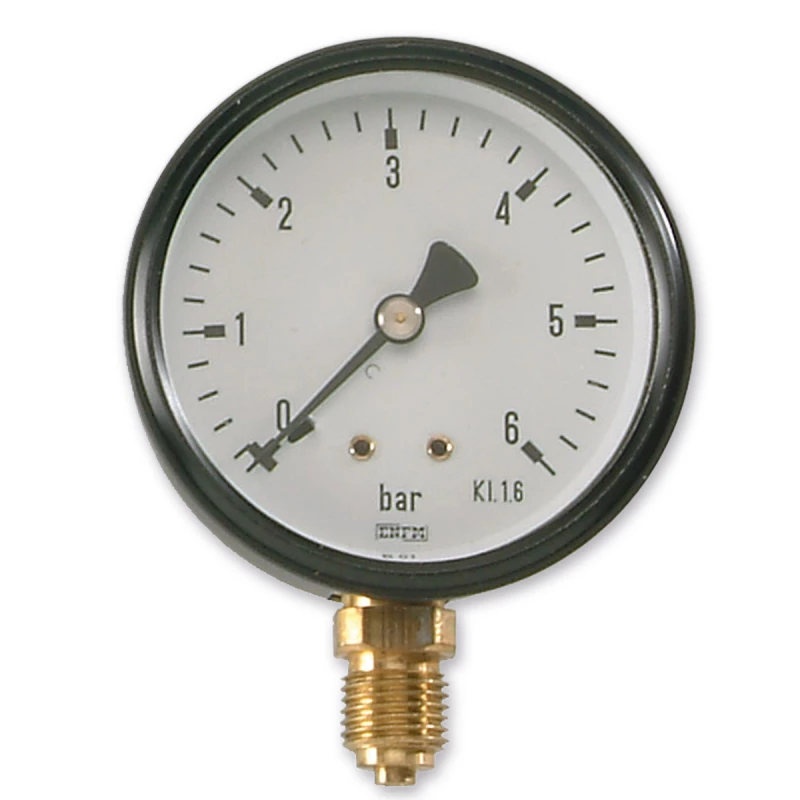

Steel bourdon tube pressure gauge | KP-460 / KP-461
cabinet diameter Ø 63 mm / Ø 100 mm, bottom connection
Suitable for: light applications
Urgency or questions about availability?
Also available
- Other scale layouts, measuring ranges and different connections
- capillary and separation diaphragm
Specifications
| Type | KP-460 / KP-461 |
| Material | Steel, black coated |
| Bourdon type | Phosphor-Bronze |
| Display | Plastic |
|
|
|
|
KP-461
|
|
| cabinet diameter | Ø 63 mm |
| Threaded connection | G 1/4" |
|
|
|
|
KP-460
|
|
| cabinet diameter | Ø 100 mm |
| Threaded connection | G 1/2" |
|
|
|
| Measuring range | From -1/+15 to 0/+1000 bar |
| Accuracy | Class 1.6 |
| Protection class | IP 32 according to NF EN 60529 |
|
|
|
| Temperature | -25 to +60ºC |
| Medium | up to 100ºC, for higher temperatures a |
| syphon to be applied | |
Contact
For more information about our pressure gauges and accessories, please contact us at:
