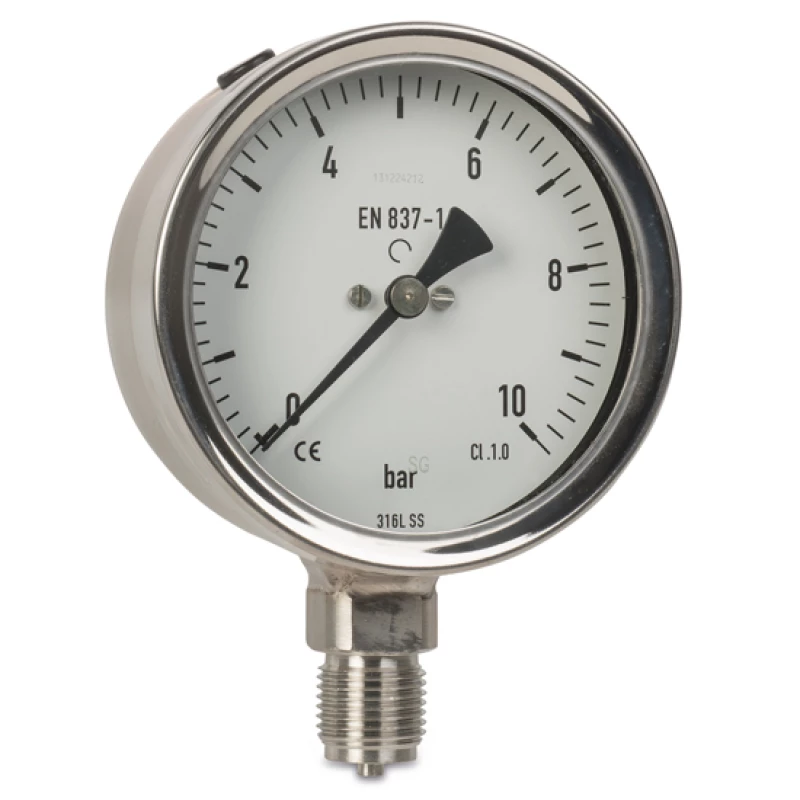

Stainless steel bourdon tube pressure gauge | KP-463 / KP-4631
cabinet diameter Ø 63 mm, G 1/4" bottom connection
Suitable for: industrial applications

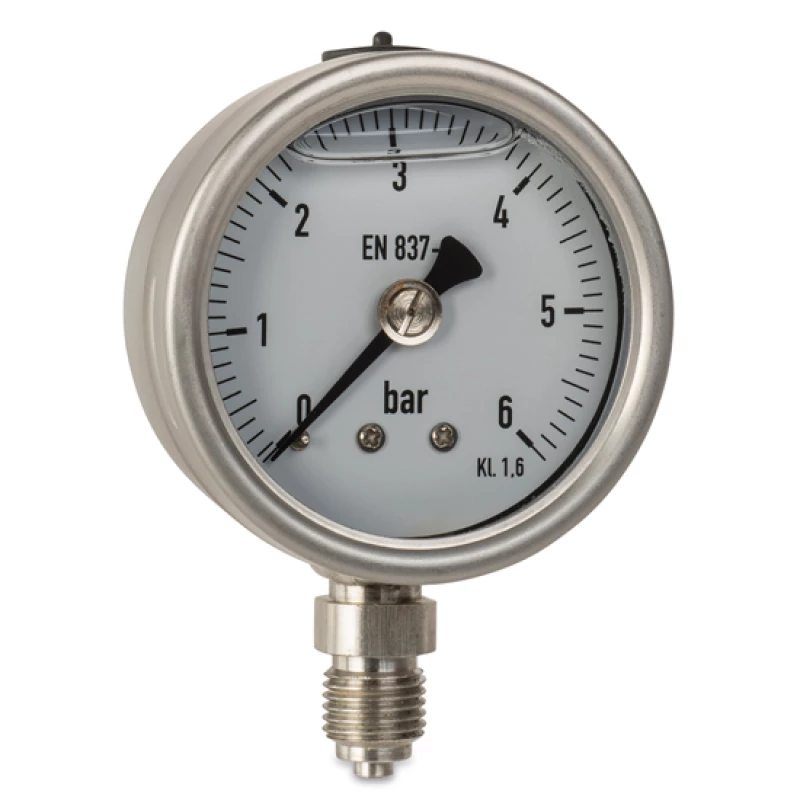

- Type KP-4631 glycerin filled.
Also available
- Other scale layouts, measuring ranges and different connections
- capillary and separation diaphragm
- different filling
Specifications
| Type | KP-463 / KP-4631 |
| Material | STAINLESS STEEL |
| Cabinet material | RVS 304 |
| Bourdon type | RVS 316 |
| Display | Plastic, optionally in multilayer safety glass |
|
|
|
| cabinet diameter | Ø 63 mm |
| Threaded connection | G 1/4" A |
|
|
|
| Measuring range | From -1/+15 to 0/+1600 bar |
| Accuracy | Class 1.6 |
| Protection class | IP 65 according to NF EN 60529 |
| "Blow-out disk" | Back of cabinet |
|
|
|
| Temperature | -40 to 60ºC |
| Medium | up to 100ºC, for higher temperatures a |
| syphon to be applied | |
