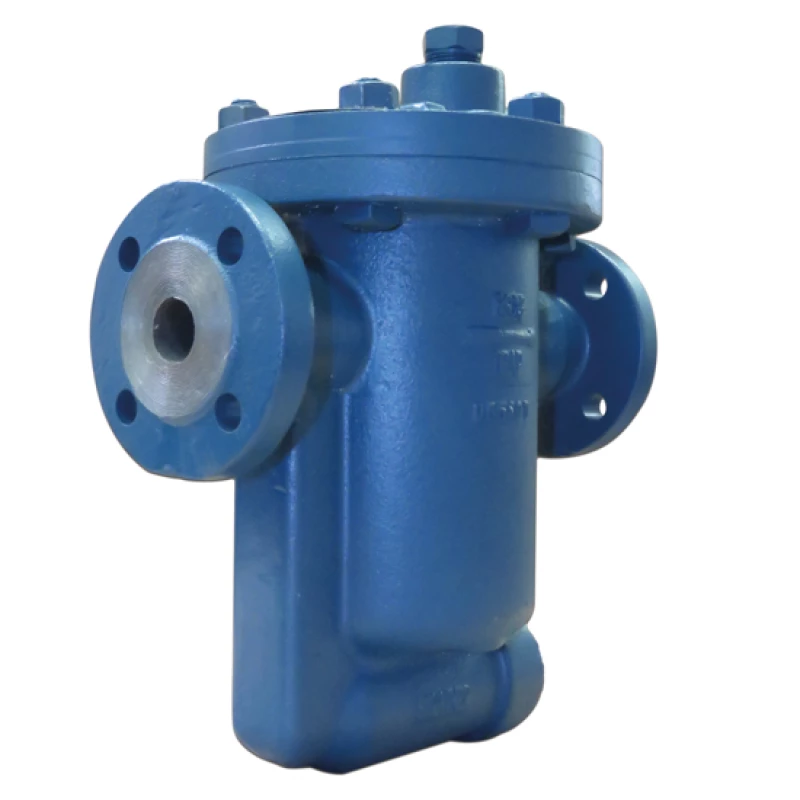

Nodular Cast Iron Armstrong inverted bucket steam trap - 680F Series

Nodular Cast Iron Armstrong inverted bucket steam trap | 680F Series

Nodular Cast Iron Armstrong inverted bucket steam trap | 680F Series
Nodular Cast Iron Armstrong inverted bucket steam trap | 680F Series
Nodular Cast Iron Armstrong inverted bucket steam trap | 680F Series
gallery slider left
gallery slider right

for horizontal connection and strainer

Suitable for: dewatering, tracing and process applications

  • Discharges condensate directly, no condensate back up.
  • Maintenance-free and not sensitive to dirt.
  • Resistant to water hammer.
Specifications
Downloads
Nodular Cast Iron Armstrong inverted bucket steam trap | 680F Series
Nodular Cast Iron Armstrong inverted bucket steam trap | 680F Series
Nodular Cast Iron Armstrong inverted bucket steam trap | 680F Series
Previous series Next Series

Specifications

Type 680F Series
Material Nodular cast iron ASTM A395 Gr. 60-40-18
Internals RVS 304
Valve and seat STAINLESS STEEL 17-4PH H900
Filter RVS 304
Design pressure max. 17 bar
Backpressure 99% of the inlet pressure
Steam pressure max 17 bar @ 232 ºC
Connections Flange connections PN25 EN1092-2
Also available different valve passage
internal check valve
with thermalstatic vent bucket
