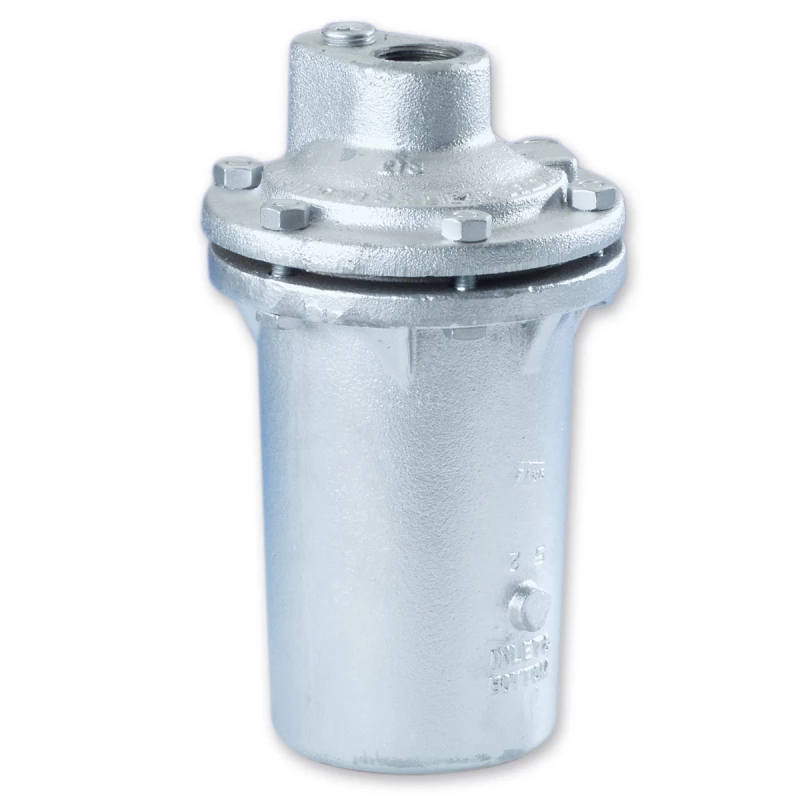

Cast iron Armstrong inverted bucket steam trap - 200 Series

Cast iron Armstrong inverted bucket steam trap | 200 Series

Cast iron Armstrong inverted bucket steam trap | 200 Series
Cast iron Armstrong inverted bucket steam trap | 200 Series
gallery slider left
gallery slider right

with vertical connection

Suitable for: dewatering, tracing and process applications

  • Discharges condensate directly, no condensate back up.
  • Maintenance-free and not sensitive to dirt.
  • Resistant to water hammer.
Specifications
Cast iron Armstrong inverted bucket steam trap | 200 Series
Cast iron Armstrong inverted bucket steam trap | 200 Series
Previous series Next Series

Specifications

Type 200 Series
Material Cast Iron.
Internals RVS 304
Valve and seat hardened chrome steel 440F
Plug steel
Design pressure max. 16 bar
Backpressure up to 99% of inlet pressure
Steam pressure max. 13 bar
Connections BSP thread or sear flanges

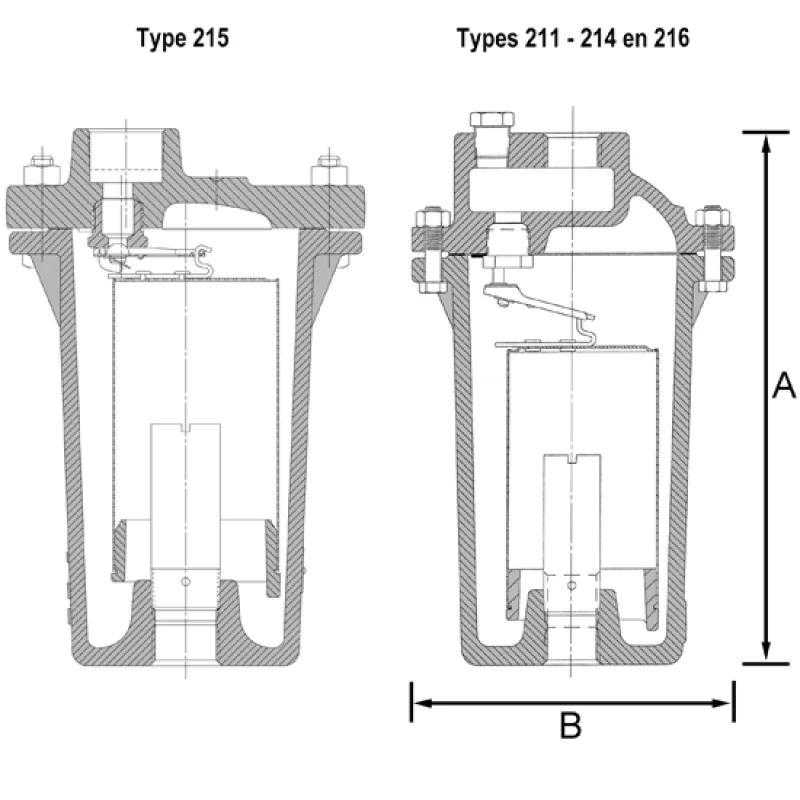

Series 215 steel cover with eccentric connection
Temperature max. 232ºC
Also available different valve passage
with thermalstatic vent bucket
other connections
Contact

For more information on our inverted bucket steam traps, please contact us at:
