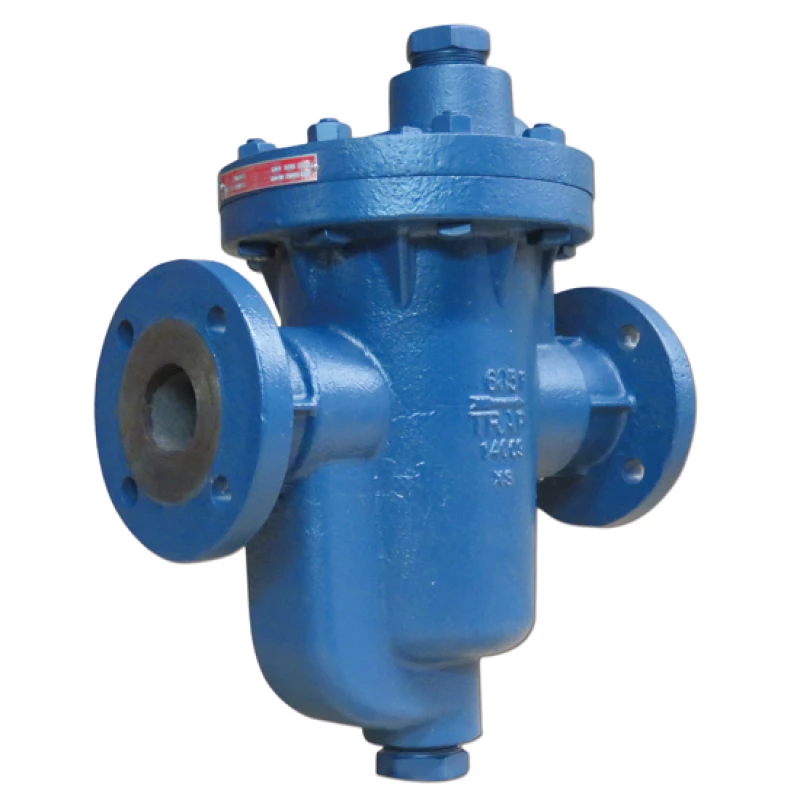

Nodular Cast Iron Armstrong inverted bucket steam trap - 614F-616F series

Nodular Cast Iron Armstrong inverted bucket steam trap | 614F-616F series

Nodular Cast Iron Armstrong inverted bucket steam trap | 614F-616F series
Nodular Cast Iron Armstrong inverted bucket steam trap | 614F-616F series
Nodular Cast Iron Armstrong inverted bucket steam trap | 614F-616F series
gallery slider left
gallery slider right

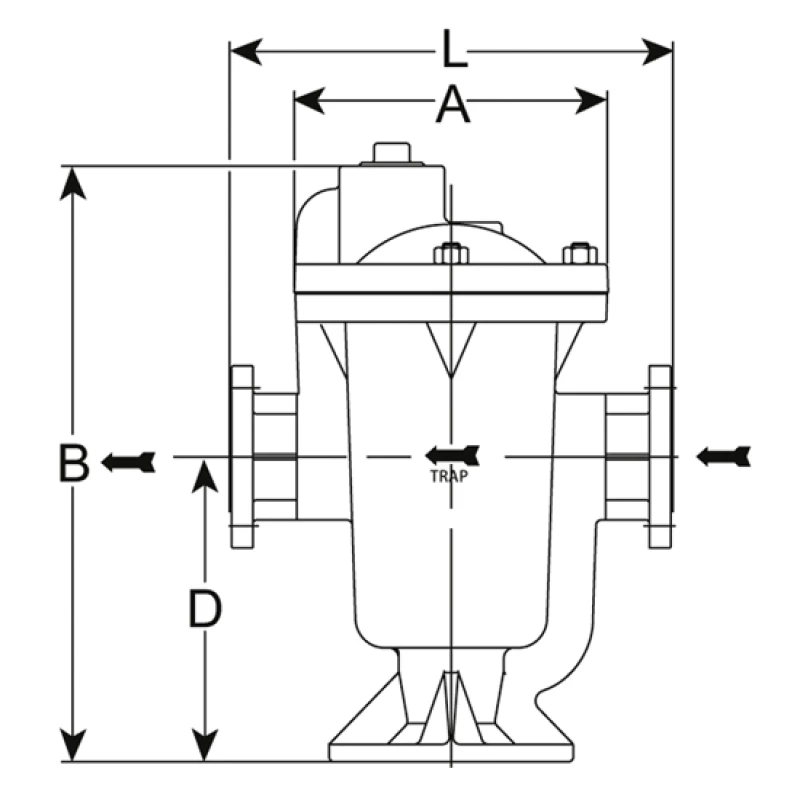

for horizontal connection

Suitable for: dewatering, tracing and process applications

  • Discharges condensate directly, no condensate back up.
  • Maintenance-free and not sensitive to dirt.
  • Resistant to water hammer.
Specifications
Nodular Cast Iron Armstrong inverted bucket steam trap | 614F-616F series
Nodular Cast Iron Armstrong inverted bucket steam trap | 614F-616F series
Nodular Cast Iron Armstrong inverted bucket steam trap | 614F-616F series
Previous series Next Series

Specifications

Type 614F-616F series
Material Nodular cast iron ASTM A395 Gr. 60-40-18
Internals RVS 304
Valve and seat STAINLESS STEEL 17-4PH H900
Design pressure max. 17 bar
Backpressure 99% of the inlet pressure
Steam pressure max 17 bar @ 232 ºC
Connections Flange connections PN25 EN1092-2
Also available different valve passage
internal check valve
with thermalstatic vent bucket
Contact

For more information on our inverted bucket steam traps, please contact us at:
