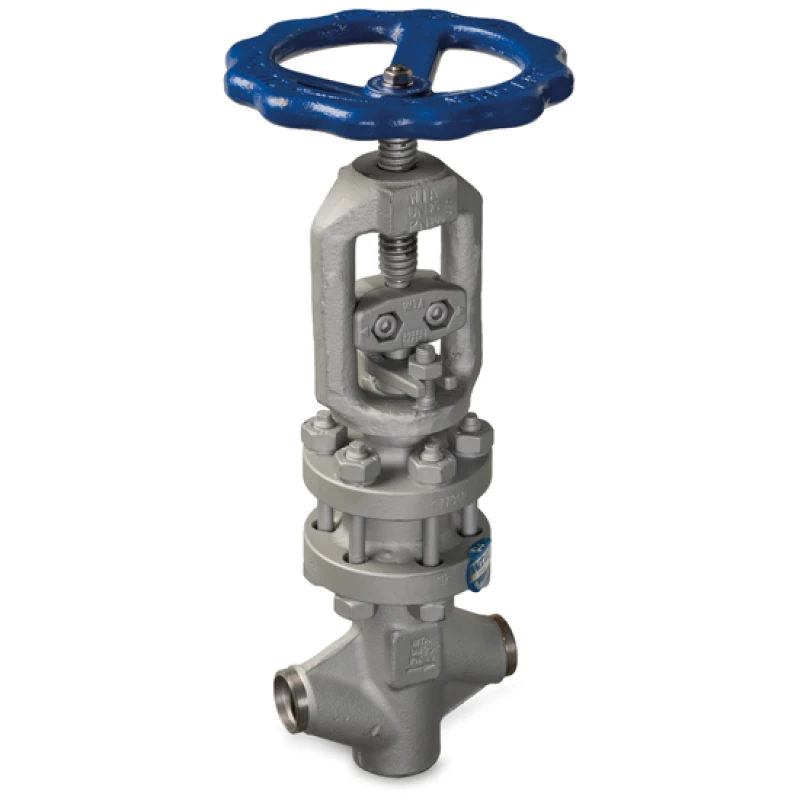

Steel WTA gate valve with bellows - KP-670

Steel WTA gate valve with bellows | KP-670

Steel WTA gate valve with bellows | KP-670
Steel WTA gate valve with bellows | KP-670
gallery slider left
gallery slider right

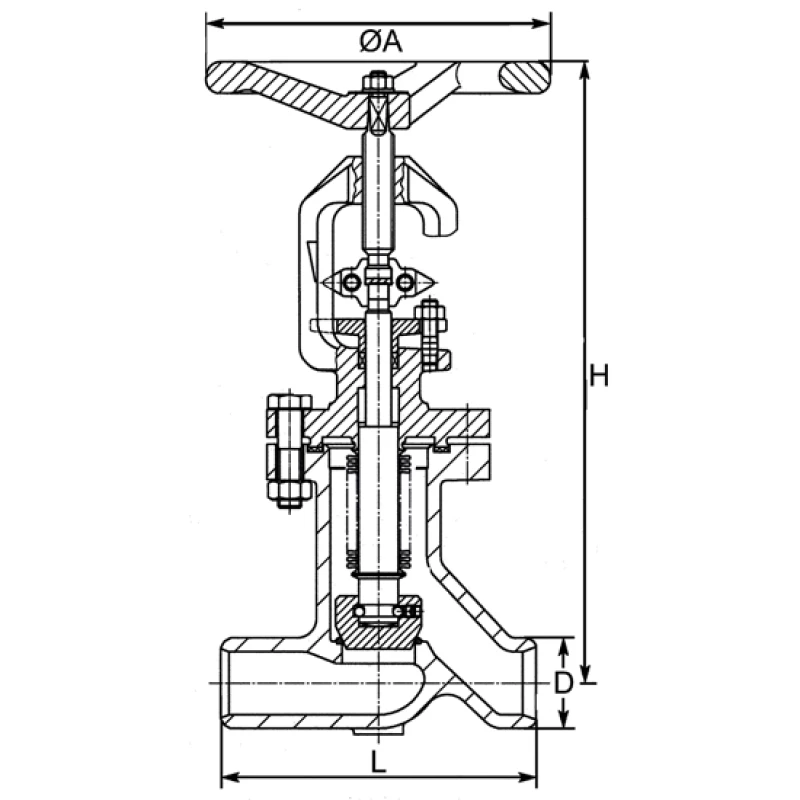

Welding connection Butt-Weld, PN40 and PN100

Suitable for: cold and hot water, steam, hydrocarbons, gas, air and thermal oil

  • WTA Type 11.3-G-SE.
  • Emission free seal, maintenance free.
  • Bellows protected against water hammer.
  • Durable in use.
  • "Backseat" that prevents "Blow-outs" and safety stop bushing gasket.
  • External thread spindle with position indication
  • Valve bearings and split spindle as anti-torsion protection for the bellows
Specifications
Steel WTA gate valve with bellows | KP-670
Steel WTA gate valve with bellows | KP-670
Previous series Next Series

Options

  • in PN160
  • with control valve
  • welded upper part
  • in low temperature steel
  • in freestanding version
  • with pneumatic control

Specifications

Type KP-670
Material Cast steel GP240GH
Pressure class PN 40 or PN 100
Top part Steel GP240GH
Handwheel Cast iron EN-GJL-200 coated
Seat Stainless steel X15CrNiMn18-8 (PN 100 stellite 21)
Disc Stainless steel X20Cr13 conical sealing,
from DN125 stainless steel
Spindle 2-piece Upper part stainless steel X39CrMo17-1
Lower part stainless steel X6CrNiMoTi17-12-2
Bellows Multi-walled stainless steel X6CrNiMoTi17-12-2
Cover gasket Comb profile stainless steel X6CrNiMoTi17-12-2 with graphite coating
Gland packing Graphite
Face to face EN558-1 series 1
Max. pressure difference according to EN13709
Temperature -10°C to +450°C
