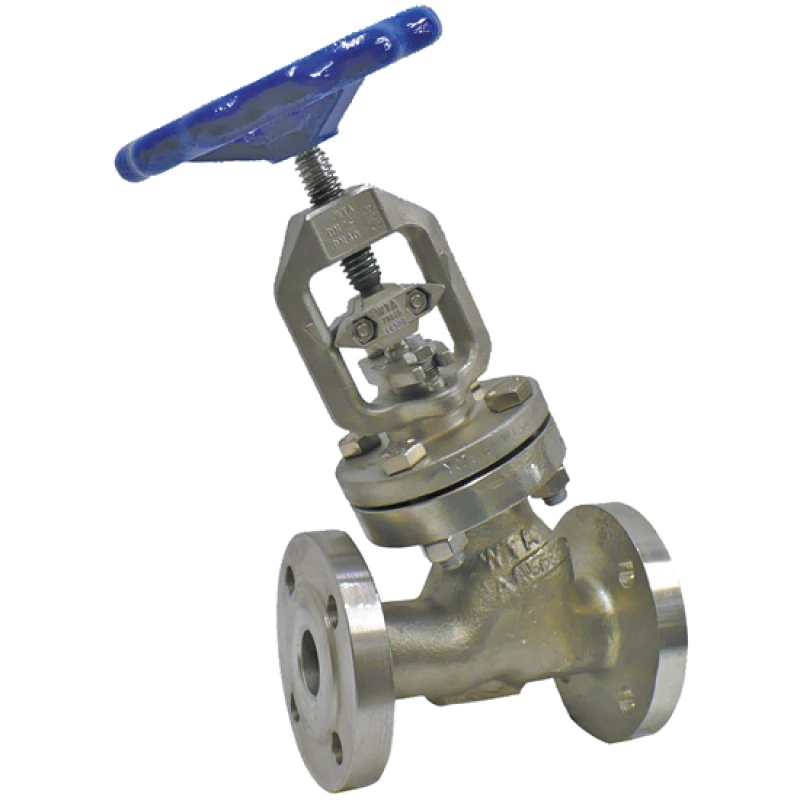

Stainless steel WTA free flow valve with bellows | KP-712
Flange connection PN 40
Suitable for: cold and hot water, hydrocarbons, gas, air, chemicals and acids
- WTA Type 11.3-S-FL-A4.
- Emission free seal, maintenance free.
- Bellows protected against water hammer.
- Durable in use.
- "Backseat" that prevents "Blow-outs" and safety stop bushing gasket.
- External wire spindle with position indicator.
- Lowered valve and split spindle as anti-torsion protection for the bellows.
Urgency or questions about availability?
Options
- with control valve
- with welded upper part
- with heating jacket
- with pneumatic control
- with S(oft) H(igh) T(temperature) S(ealing) to max 220°C
Specifications
| Type | KP-712 |
| Material | Stainless steel GXCrNiMo19-11-2 |
| Pressure class | PN 40 |
| Top part | Stainless steel GXCrNiMo19-11-2 |
| Handwheel | Cast iron EN-GJL-200 epoxy coated |
| Seat | stainless steel limited |
| Disc | Stainless steel X6CrNiMoTi17-12-2 riveted, conically sealing |
| Spindle 2-piece | Upper part stainless steel X39CrMo17-1 |
| Lower part stainless steel X6CrNiMoTi17-12-2 | |
| Bellows | Multi-walled stainless steel X6CrNiMoTi17-12-2 |
| Cover gasket | Kammprofile stainless steel X6CrNiMoTi17-12-2 with graphite coating |
| Gland packing | Graphite |
|
|
|

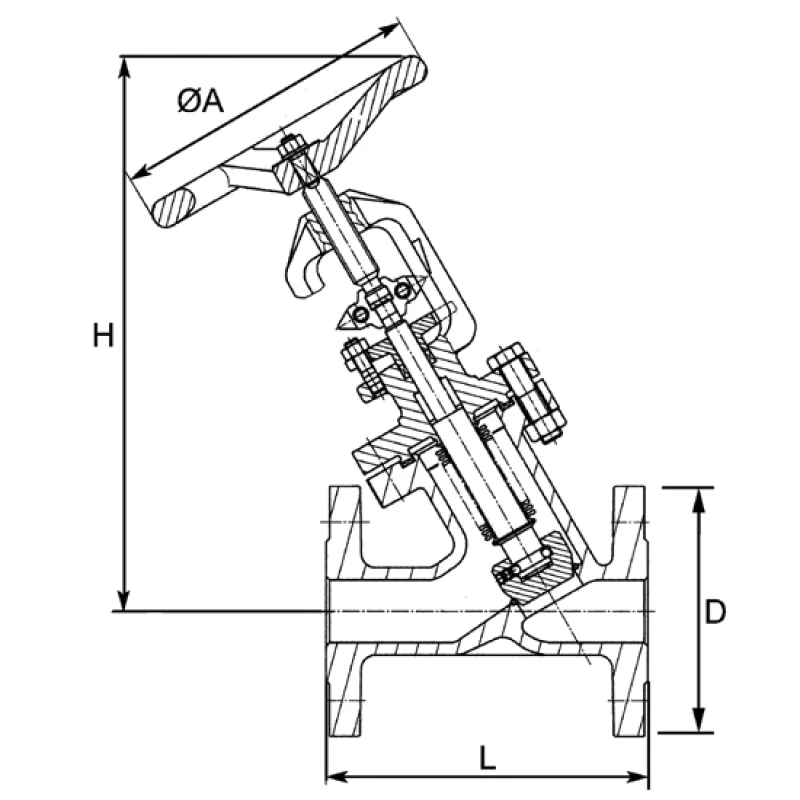

| Face to face | EN558-1 series 1 |
| Connection | EN1092-1 |
|
|
|
| Maximum pressure differential | according to EN13709 |
| Temperature | -200°C to +400°C |
