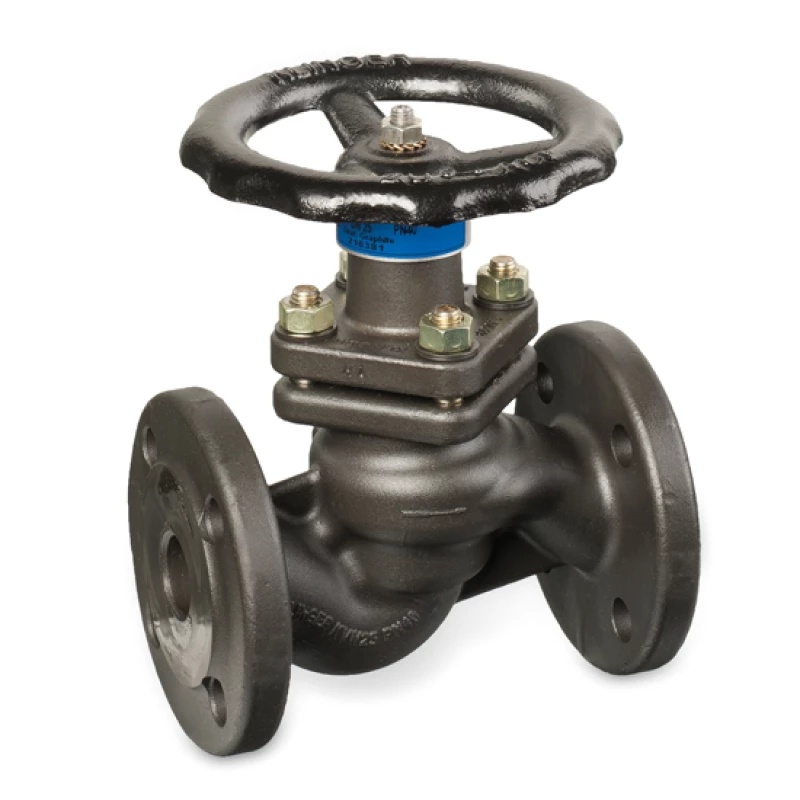

Steel KLINGER KVn Piston valve | KP-171
Flange connection PN 40*
Suitable for: steam, condensate, water, oil, air and gas
- By default, the valve already has control characteristics.
- Universally applicable (steam, thermal oil, water, gas), one type of rings for all media except highly oxidizing acids.
- Simple and inexpensive revision, can be repeated many times.
- Can be overhauled in the pipe.
- High Kv value.
- Parts available from stock.
Specifications
| Type | KP-171 |
| Material | Cast steel GP240GH |
| Pressure class | PN40* |
| Maximum working steam pressure 28.4 barg (250ºC) | |
| Top part | Forged steel Up to DN 50 |
| Cast steel from DN 65 | |
| Handwheel | Cast Iron EN-GJL-200 |
| Spindle | Stainless steel X20Cr13 |
| piston | Stainless steel X14CrMoS17 |
| Seal | KLINGER KX module |
|
|
|
| Face to face | EN558-1 series 1 |
| Connection | EN1092-1 |
|
|
|
| Temperature | -10°C to + 350°C PN40 |
| -60°C to + 350°C PN30 (stainless steel A4 bolts, stainless steel lantern) | |
|
|
|
