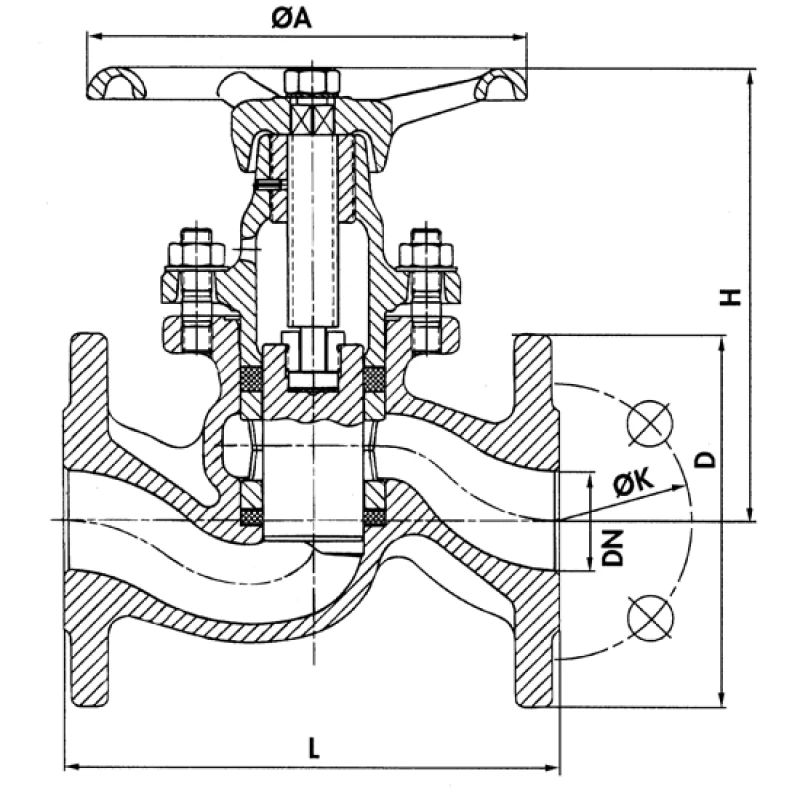

Cast iron KLINGER KVn Piston valve - KP-121

Cast iron KLINGER KVn Piston valve | KP-121

Cast iron KLINGER KVn Piston valve | KP-121
Cast iron KLINGER KVn Piston valve | KP-121
gallery slider left
gallery slider right

Flange connection PN 16

Suitable for: steam, condensate, water, oil, air and gas

  • By default, the valve already has control characteristics.
  • Universally applicable (steam, oil, water, gas), one type of rings for all media except highly oxidizing acids.
  • Simple and inexpensive revision, can be repeated many times.
  • Can be overhauled in the pipe.
  • High Kv value.
  • Parts available from stock
Specifications
Downloads
Cast iron KLINGER KVn Piston valve | KP-121
Cast iron KLINGER KVn Piston valve | KP-121
Next series

Specifications

Type KP-121
Material Cast Iron EN-GJL-250
Pressure class PN 16
Maximum working steam pressure 13 bar (195ºC)
Top part up to DN50 forged steel
from DN65 cast iron
Handwheel Cast Iron EN-GJL-200
Spindle Stainless steel X20Cr13
piston Stainless steel X14CrMoS17
Seal KLINGER KX module
Face to face EN 558-1 series 1
Connection EN 1092-2
Temperature -10°C to +300°C
