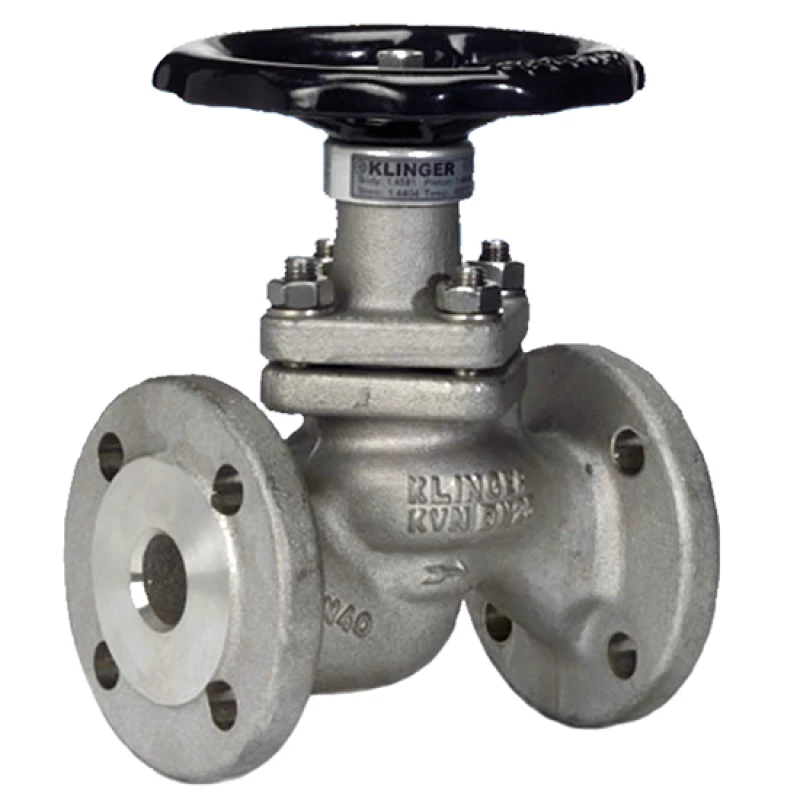

Stainless steel KLINGER KVn Piston valve | KP-101
Flange connection PN 40
Suitable for: steam, condensate, water, oil, air, gas, chemicals and acids*
- (*For highly oxidizing acids, apply PTFE seals).
- By default, the valve already has control characteristics.
- Resistant to water hammer.
- Universally applicable (steam, oil, water, gas): one type of rings for all media except highly oxidizing acids.
- Simple and inexpensive revision, can be repeated many times.
- Can be overhauled in the pipe.
- High Kv value.
Specifications
| Type | KP-101 |
| Material | stainless steel GX5CrNiMoNb19-11-12 |
| Pressure class | PN 40 |
| Top part | stainless steel GX5CrNiMoNb19-11-12 |
| Handwheel | Steel |
| Spindle | Stainless steel X2CrNiMo17-12-2 |
| piston | Stainless steel X2CrNiMo17-12-2 |
| Seal | KLINGER KX Module. |
| Option PTFE seals | |
|
|
|
| Face to face | EN558-1 series 1 |
| Connection | EN 1092-1 |
|
|
|
| Temperature | -10°C to + 400°C PN40 |
| -60°C to + 400°C PN30 | |
| -85°C to + 400°C PN10 | |
