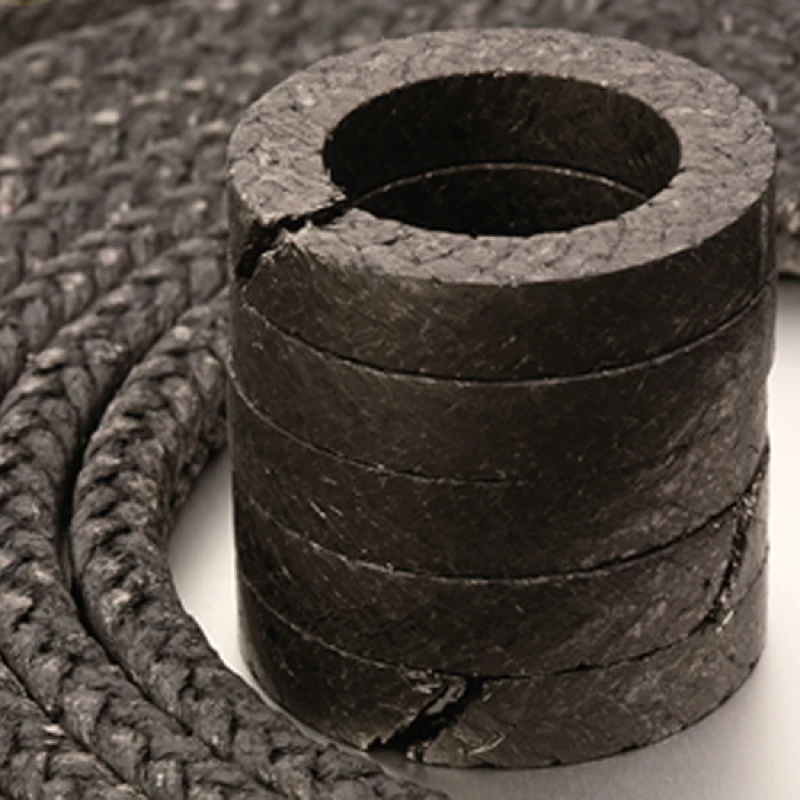

Carbon fiber gland packing | Lattygraf 6745 NG

Gasketing of continuous carbon fiber filaments, impregnated by our patented 'filcoat' process, and re-impregnated during braiding with a special graphite mix with corrosion inhibitor

Suitable for: almost all media in pumps and valves

  • Very universally applicable.
  • Very low friction coefficient.
  • Perfectly flexible and elastic properties.
  • Due to unique corrosion inhibitor perfect protection of your shaft/spindle.
  • Also available as pre-pressed rings/set.
Specifications
Carbon fiber gland packing | Lattygraf 6745 NG
Previous series Next Series

Also available

  • different lengths or pre-pressed rings

Specifications

Type Latty grave 6745 NG
Material Pure carbon yarns with special graphite blend impregnation
*Max. temperature 650°C
*Max. pressure 300 bar
*Max. speed 25 m/s
_Ph range 0-14
P.V. factor 450
P.T. factor 95000
Approved/tested by AECL (valves)
* Not at the same time
