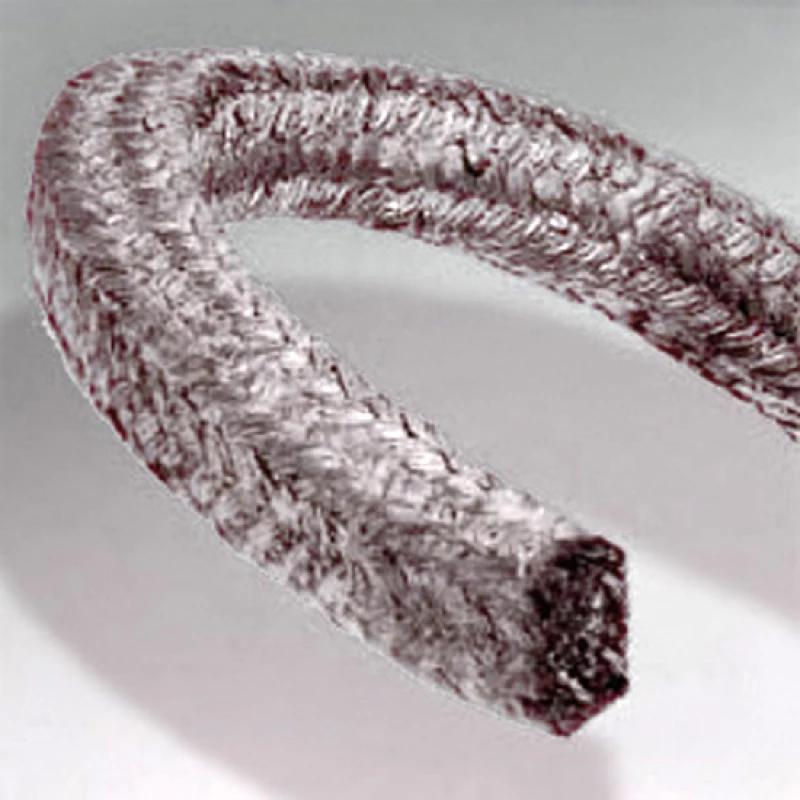

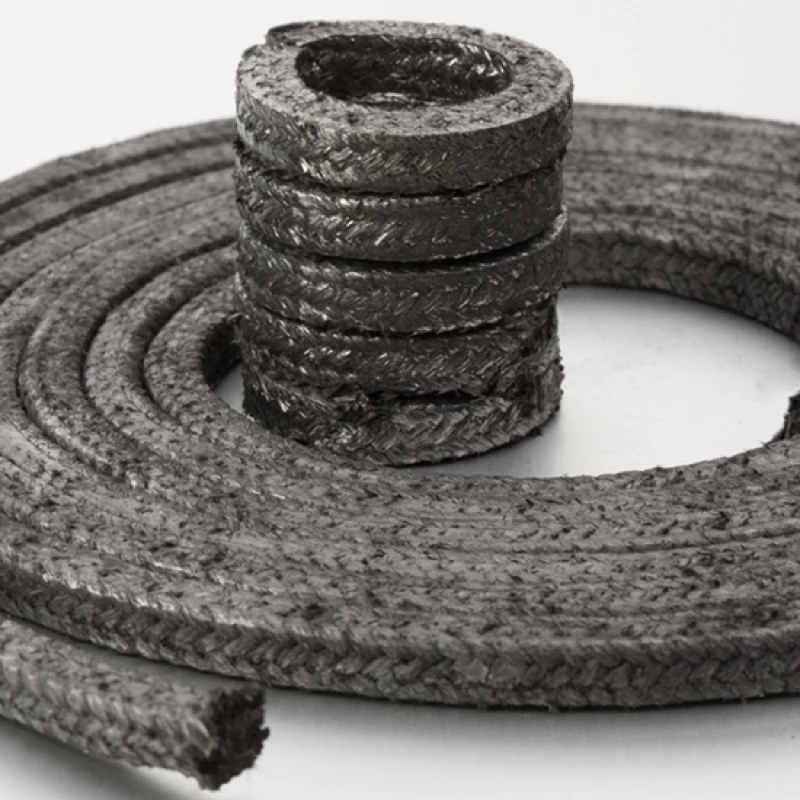

Carbon fiber gland packing | Lattygraf 6988 EF
Gasket made of HD graphite/carbon fiber filaments, impregnated by our patented 'filcoat' process, re-impregnated and during braiding with a special graphite mix with corrosion inhibitor
Suitable for: almost all media in valves
- Very universally applicable in valves.
- Low coefficient of friction.
- Due to unique corrosion inhibitor perfect protection of your shaft/spindle.
- Also available as pre-pressed rings/set.
- Also very suitable as a bottom and top ring for soft intermediate rings.
- Meets the highest emission requirements.
Urgency or questions about availability?
Also available
- different lengths or pre-pressed rings
Specifications
| Type | Latty grave 6988 EF |
| Material | HD graphite / carbon yarns with special graphite mix and inhibitor |
|
|
|
| *Max. temperature | 600°C |
| *Max. pressure | 400 bar |
| *Max. speed | < 1 m/s |
| _Ph range | 0-14 |
|
|
|
| Approved/tested by | ISO 15848-1, Class BH emission requirements. |
| TÜV TA-LUFT requirements according to VDI 2440 | |
|
|
|
|
* Not at the same time
|
|
|
|
|
