Graphite fiber gland packing | Lattygraf T

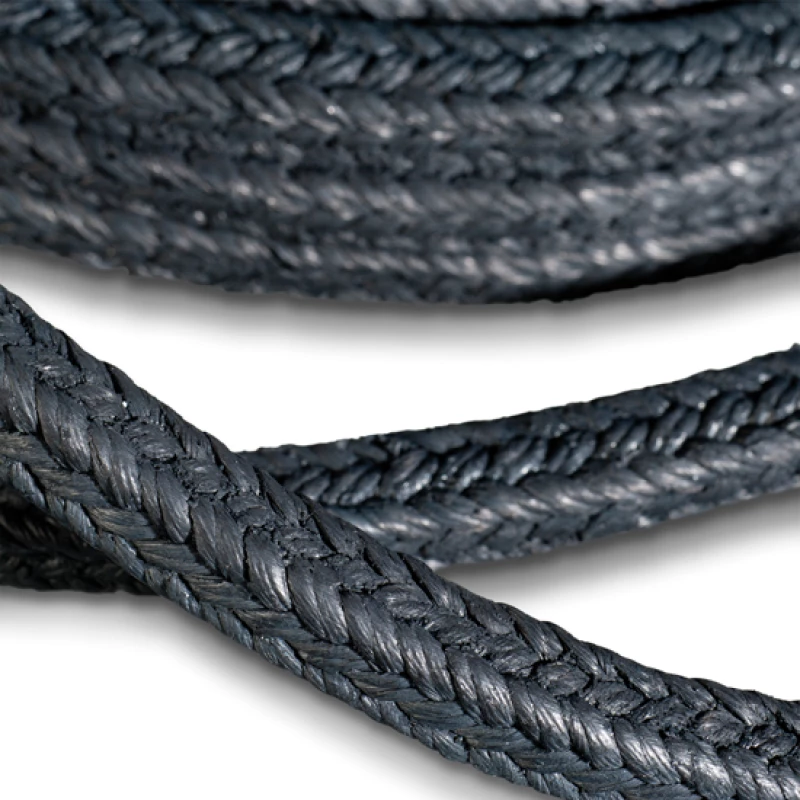

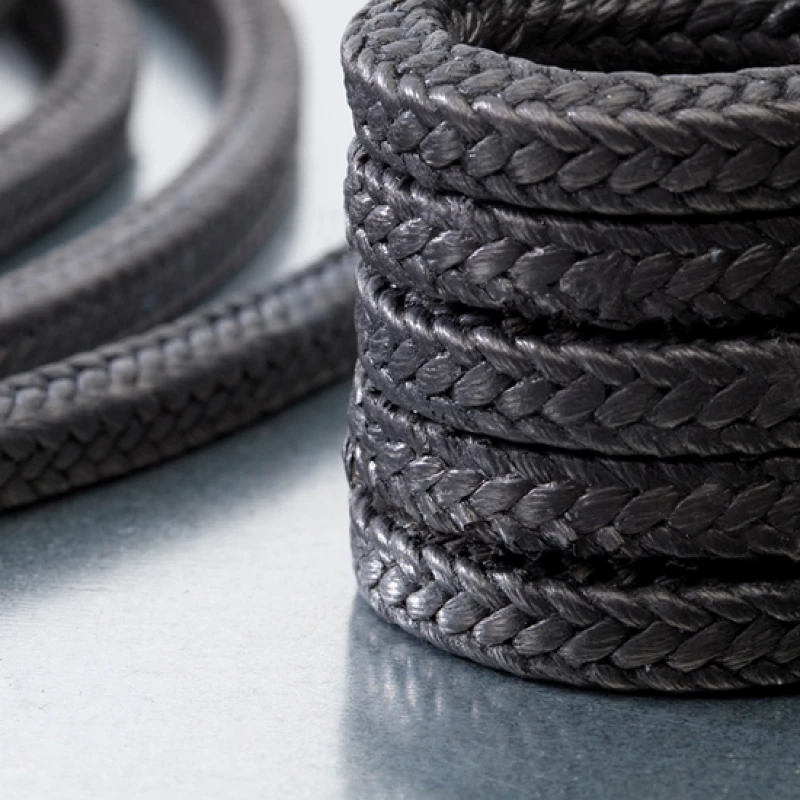

A diagonally braided gasket of graphite fiber wires
Suitable for: developed for high-speed high-temperature pumps such as boiler feedwater pumps
- A gasket for high-speed pumps developing gasket temperatures up to 600°C.
- Perfect heat conduction.
- Low friction coefficient.
- Perfectly flexible and elastic properties.
Also available
- different lengths or pre-cut strands
Specifications
| Type | Lattygraph T |
| Material | Pure graphite fiber wires |
|
|
|
| *Max. temperature | 600°C |
| *Max. pressure | 300 bar |
| *Max. speed | 35 m/s |
| _Ph range | 0-14 |
|
|
|
|
* Not at the same time
|
|
Contact
For more information about our gland packings , please contact:
