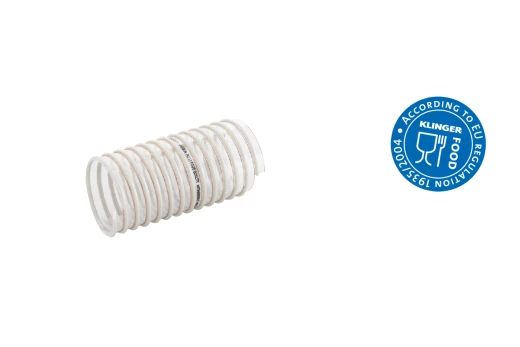

Oregon PU AS hoses
OREGON PU ASH HOSES | THROUGHPUT OF DRY NUTRIENTS
Application
Highly flexible plastic transport hose for conveying dry substances. The hose is made entirely of Polyurethane and is therefore very wear-resistant. Excellent for fixed or flexible installation in the food industry. Suitable for transporting dry nutrients such as sugar, flour, milk powder, animal feed, granulates and dry pellets.
The lightweight hose is extremely flexible in use, with no kink hazard. In addition, the hose is equipped with a plastic spiral which makes the hose suitable for both suction and light pressing applications (up to 0.6 bar).
Advantages
- Exceptional flexibility allowing the hose to be effortlessly bent with a very small tube radius, without kinking.
- The hose is highly transparent making it possible to observe the nutrients during transport.
- The light weight of the hose makes it easy to handle and widely applicable.
- Wear-resistant all-polyurethane hose guarantees long life.
- The hose meets the strictest European standards.
- Equipped with a static wire, which prevents unwanted static electricity from building up.
- Available in different sizes (from 25 to 200 mm).
Technical Description
Inner wall: abrasion-resistant polyurethane
Reinforcement: embedded PVC coil, white
Outer wall: abrasion-resistant polyurethane
Temperature range: -25°C to +85°C
Standards and approval
- EU regulation EN1935/2004
- EU regulation n° 10/2011
| Diameter inside (mm) | Wall thickness (mm) | Working pressure (bar) | Burst pressure (bar) | Max vacuum (M H2O) | Bending radius (mm) | Weight (g/m) |
| 25 | 0.5 | 0.60 | 1.80 | 4 | 25 | 190 |
| 30 | 0.6 | 0.60 | 1.80 | 4 | 30 | 210 |
| 32 | 0.6 | 0.60 | 1.80 | 4 | 32 | 240 |
| 35 | 0.6 | 0.40 | 1.20 | 4 | 35 | 250 |
| 38 | 0.6 | 0.40 | 1.20 | 3 | 38 | 310 |
| 40 | 0.6 | 0.40 | 1.20 | 3 | 40 | 330 |
| 45 | 0.6 | 0.40 | 1.20 | 3 | 45 | 370 |
| 50 | 0.7 | 0.40 | 1.20 | 3 | 50 | 440 |
| 60 | 0.7 | 0.40 | 1.20 | 3 | 60 | 500 |
| 63 | 0.7 | 0.30 | 0.90 | 3 | 63 | 530 |
| 70 | 0.7 | 0.30 | 0.90 | 3 | 70 | 660 |
| 75 | 0.7 | 0.30 | 0.90 | 3 | 75 | 660 |
| 80 | 0.7 | 0.20 | 0.60 | 3 | 80 | 740 |
| 90 | 0.8 | 0.20 | 0.60 | 3 | 90 | 810 |
| 100 | 0.8 | 0.20 | 0.60 | 3 | 100 | 920 |
| 110 | 0.8 | 0.20 | 0.60 | 3 | 110 | 1120 |
| 120 | 0.8 | 0.15 | 0.45 | 3 | 120 | 1180 |
| 125 | 0.8 | 0.15 | 0.45 | 3 | 125 | 1250 |
| 130 | 0.8 | 0.10 | 0.30 | 3 | 130 | 1350 |
| 140 | 0.9 | 0.10 | 0.30 | 3 | 140 | 1500 |
| 150 | 0.9 | 0.10 | 0.30 | 3 | 150 | 1600 |
| 160 | 0.9 | 0.10 | 0.30 | 3 | 160 | 1780 |
| 180 | 0.9 | 0.10 | 0.30 | 3 | 180 | 2100 |
| 200 | 0.9 | 0.10 | 0.30 | 3 | 200 | 2280 |
All specifications are based on a temperature of 23°C +/- 2°C (ISO 291). Tolerance +/- 5%.
