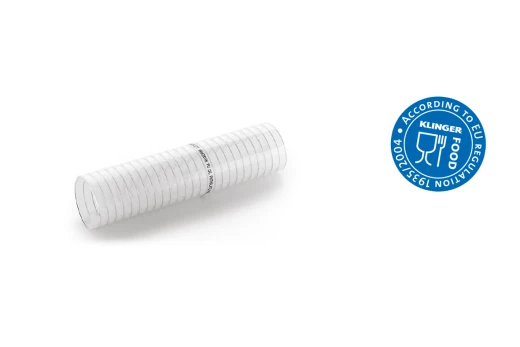

Armorvin PU oil hoses

ARMORVIN PU OIL HOSES | PASSAGE OF LIQUID NUTRIENTS

Application

Highly flexible plastic transport hose for conveying oily liquids and oily products. The Polyurethane inner wall is highly abrasion-resistant and suitable for use for foodstuffs. In addition, the hose is suitable for conveying dry nutrients.

The lightweight hose is extremely flexible in use, with no kink hazard. In addition, the hose is equipped with a steel coil which makes the hose suitable for both suction and pressure applications.

Advantages

Exceptional flexibility allowing the hose to be effortlessly bent with a very small tube radius, without kinking.
The hose is highly transparent making it possible to observe the nutrients during transport.
The light weight of the hose makes it easy to handle and widely applicable.
Wear-resistant polyurethane inner wall guarantees long life.
The hose meets the strictest European standards.
The hose is impervious to most cleaning agents.
The smooth thermoplastic outer wall is very easy to clean and does not absorb dirt

Technical Description

Inner wall: abrasion-resistant polyurethane, smooth
Reinforcement: embedded steel spiral
Outer wall: PVC, transparent, smooth
Temperature range: -5°C to +65°C

Standards and approval

EU regulation EN1935/2004
EU regulation n° 10/2011

Diameter inside (mm)	Diameter outside (mm)	Working pressure (bar)	Burst pressure (bar)	Max vacuum (bar)	Bending radius (mm)	Weight (g/m)
10	15.5	7	21	0.85	25	140
12	17.5	7	21	0.85	30	160
14	19.5	6	18	0.85	35	175
16	21.5	6	18	0.85	40	190
18	24	6	18	0.85	45	260
20	26.5	5	15	0.85	55	280
25	32	5	15	0.85	65	450
30	38	4.5	13.5	0.85	75	540
32	40	4.5	13.5	0.85	80	580
35	43	4	12	0.85	85	630
38	46	4	12	0.85	95	685
40	49	3	9	0.85	100	845
45	54	3	9	0.80	120	970
50	59	3	9	0.80	135	1.060
60	71.5	2	6	0.80	170	1.650

All specifications are based on a temperature of 23°C +/- 2°C (ISO 291). Tolerance +/- 5%.
