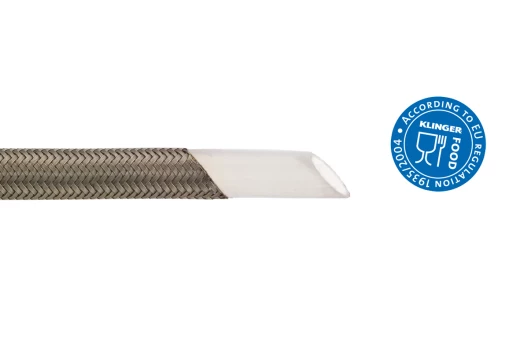

Speed-Flow hoses

Application

PTFE transport hose with wide applicability in the food industry. Applicable for all liquid food flows and where a durable solution is desired. Because of its very smooth PTFE inner wall (tube), the hose has a large bore, where sticking of products is not possible. Moreover, the hose can be used in case of high (cleaning) temperatures up to no less than +260°C.

The Klinger Speed-Flow has a high degree of pressure resistance and is available in many variations and options, such as silicone covers and sleeves.

Advantages

• Durable PTFE hose for high-performance processes in the food industry.
• The smooth PTFE tube is food resistant which prevents bacterial growth and meets all standards required in the food market.
• Because of its smooth inner wall, hose has a low coefficient of friction.
• Suitable for use in processes where high pressure resistance is desired.
• The hose has excellent resistance to chemical cleaning.
• Non-flammable and aging resistant.
• Available with numerous options, sleeves, covers, tracing and coupling variations.

Technical Description

Inner wall: PFTE tube, white smooth
Reinforcement: n/a
Outer wall: stainless steel 304 braid (braid)
Temperature range: -70°C to +260°C

Standards and approval

• EU regulation n° 1935/2004
• EU regulation n° 2023/2006
• FDA regulation 21 CFR 177.2600
• DIN26054 /1/2
