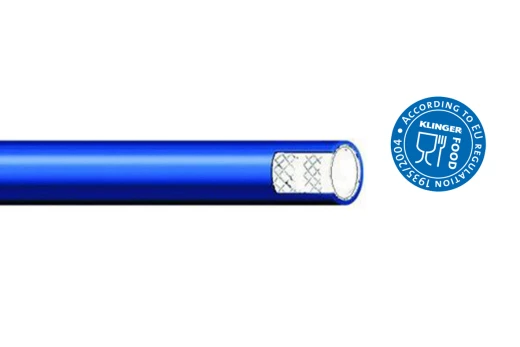

Hot water and steam hose is specially designed for cleaning and sterilizing installations in the food industry. The hose is odorless and tasteless and can be used for demineralized water, chemicals and most cleaning agents. The hose is suitable for low-pressure steaming processes up to a maximum of + 170 °C. In addition, the hose is applicable for hot water up to + 90 °C. The hose is not suitable for food transit. The LSA-5739 cleaning/steam hose is also excellent to use in combination with a stainless steel hose reel.
Inner wall: EPDM, white, smooth
Reinforcement: Textile cord layers
Outer wall: EPDM, blue, cloth print
Temperature range: water -20°C to +170°C
saturated steam +170°C
hot water +90°C (= max. 6 bar)
Diameter inside (mm) | Diameter outside (mm) | Working pressure (bar) | Burst pressure (bar) | Max vacuum (bar) | Bending radius (mm) | Weight (g/m) |
13.0 | 24.0 | 7 | 70 | - | 130 | 400 |
16.0 | 28.0 | 7 | 70 | - | 160 | 530 |
19.0 | 31.0 | 7 | 70 | - | 190 | 600 |
25.0 | 38.0 | 7 | 70 | - | 250 | 780 |
32.0 | 45.0 | 7 | 70 | - | 320 | 1050 |
38.0 | 52.0 | 7 | 70 | - | 380 | 1230 |
51.0 | 66.0 | 7 | 70 | - | 510 | 1680 |
63.0 | 80.0 | 7 | 70 | - | 630 | 2030 |
76.0 | 95.0 | 7 | 70 | - | 760 | 2760 |
102.0 | 123.0 | 7 | 70 | - | 1020 | 3630 |
