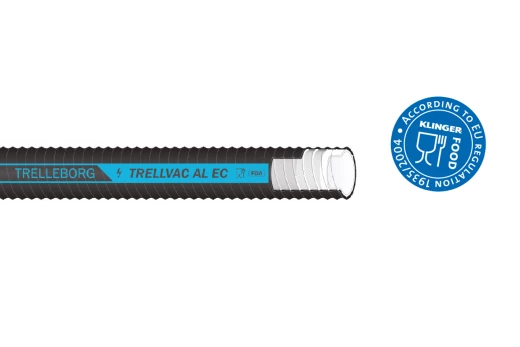

Trellvac AL EC hoses

Application

Suction / Delivery hose for bulk and abrasive products for the food industry. Suitable for conveying dry substances such as sugar, cereals, flour, milk powder and animal feed. Also suitable for conveying chemicals, grains and granulates. Intended for transport hose for vacuum trucks or stationary tanker trucks. The conductive inner and outer wall with significantly extended service life for high-speed transport.

Advantages

• Exceptional flexibility allowing the hose to be effortlessly bent with a very small tube radius, without kinking.
• Highly abrasion-resistant hose for long life under the harshest conditions.
• The hose is light is use and therefore easy to handle.
• Electrically conductive inner and outer wall.
• Applicable in an ATEX environment, zone 0, 1, 2 and 20, 21, 22.
• In compliance with the strictest European, American, French and German standards.
• The hard-wearing outer wall is weather-resistant.

Technical Description

Inner wall: food-grade wear-resistant NBR,white smooth
Reinforcement: synthetic textile with embedded steel spiral
Outer wall: wear- and weather-resistant NBR/PVC,black, corrugated
Temperature range: -10°C to +80°C

Standards and approval

• EU regulation n° 1935/2004
• FDA regulation 21 CFR 177.2600
• German legislation BfR recommendation XXI cat. 4
• French law

INERIS for application in an ATEX environment.
