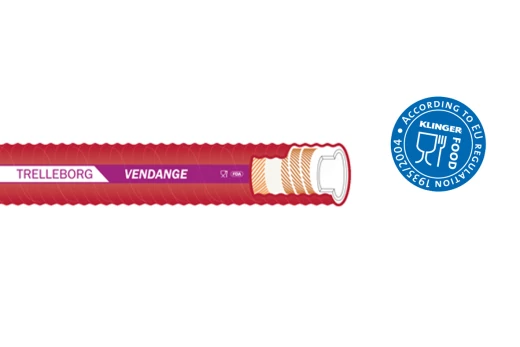

This hose is designed for the transit of fresh pigeon crop. In addition, it is ideally suited for conveying food products to warehouses, unloading facilities and unloading platforms. The Vendange food hose is also ideally suited for food products such as dairy products, wine, beer, cider, fruit juices and alcohol up to 96%. The hose is not applicable for fatty products and oils.
Inner wall: food-grade NR, white smooth
Reinforcement: synthetic textile with embedded steel coil
Outer wall: special, polymer-based, red
Temperature range: -30°C to +80°C
Steam cleaning up to: +110°C
Diameter inside (mm) | Diameter outside (mm) | Working pressure (bar) | Burst pressure (bar) | Max vacuum (bar) | Bending radius (mm) | Weight (kg/m) |
100.0 | 117.0 | 6 | 18 | - | 140 | 3.32 |
125.0 | 142.5 | 6 | 18 | - | 170 | 4.10 |
150.0 | 167.5 | 6 | 18 | - | 200 | 4.97 |
