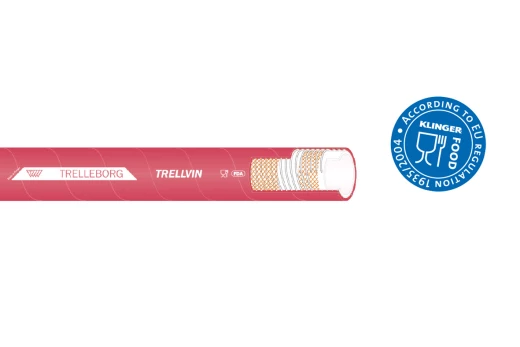

Suction Delivery hose for transporting various food products. Intended for transport from silos to warehouses, unloading plants, unloading platforms and for equipping tankers.
The Trellvin food hose is additionally excellent for food products such as milk, beer, cider, fruit juice, alcohol up to 96%. The hose is not applicable for fatty products and oils.
Inner wall: food-grade EPDM, white smooth
Reinforcement: synthetic textile with embedded PET spiral
Outer wall: weather-resistant EPDM, red, cloth print
Temperature range: -30°C to +100°C
Steam cleaning up to: +130°C
All relevant migration tests (France and FDA) were performed and approved by the French Institute of Poltiers
Diameter inside (mm) | Diameter outside (mm) | Working pressure (bar) | Burst pressure (bar) | Max vacuum (bar) | Bending radius (mm) | Weight (kg/m) |
38.0 | 50.0 | 10 | 30 | 0.7 | 150 | 1.18 |
50.0 | 62.0 | 10 | 30 | 0.7 | 200 | 1.48 |
63.0 | 75.5 | 10 | 30 | 0.7 | 315 | 2.10 |
70.0 | 83.0 | 10 | 30 | 0.7 | 350 | 2.32 |
75.0 | 88.0 | 10 | 30 | 0.7 | 375 | 2.46 |
