Transport hose specially designed for supply of air. Temperature up to 140 °C. Intended for equipping bulk tankers, for transporting bulk products. Also extremely applicable for loading and unloading of rail or road tankers.

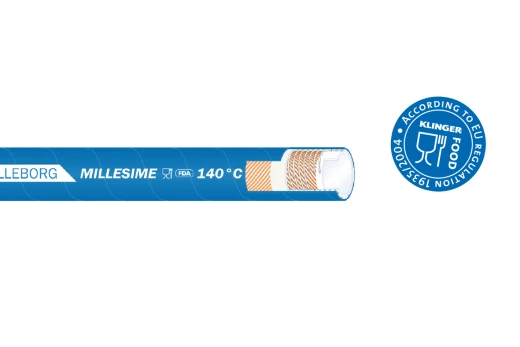

The Millesime food hose is also excellent for pressing and vacuuming other food products such as beer, cider, fruit juice, soda, vinegar, alcohol up to 96%. The hose is not applicable for fatty products and oils.
Inner wall: food-grade EPDM, white smooth
Reinforcement: synthetic textile with embedded steel coil
Outer wall: EPDM, blue, cloth print
Temperature range: -30°C to +100°C
Steam cleaning up to: +140°C
All relevant migration tests (France and FDA) were performed and approved by the French Institute of Poitiers
Diameter inside (mm) | Diameter outside (mm) | Working pressure (bar) | Burst pressure (bar) | Max vacuum (bar) | Bending radius (mm) | Weight (kg/m) |
25.0 | 36.0 | 10 | 30 | 0.9 | 55 | 0.81 |
32.0 | 43.0 | 10 | 30 | 0.9 | 70 | 0.98 |
38.0 | 49.0 | 10 | 30 | 0.9 | 80 | 1.15 |
40.0 | 51.0 | 10 | 30 | 0.9 | 85 | 1.20 |
43.0 | 54.0 | 10 | 30 | 0.9 | 92 | 1.30 |
45.0 | 56.0 | 10 | 30 | 0.9 | 98 | 1.32 |
51.0 | 62.5 | 10 | 30 | 0.9 | 105 | 1.66 |
53.0 | 64.5 | 10 | 30 | 0.9 | 110 | 1.72 |
60.0 | 71.5 | 10 | 30 | 0.9 | 125 | 1.85 |
63.0 | 74.5 | 10 | 30 | 0.9 | 130 | 2.00 |
70.0 | 81.5 | 10 | 30 | 0.9 | 145 | 2.24 |
76.0 | 88.5 | 10 | 30 | 0.9 | 165 | 2.95 |
89.0 | 102.0 | 10 | 30 | 0.9 | 330 | 3.44 |
100.0 | 113.0 | 10 | 30 | 0.9 | 380 | 3.75 |
102.0 | 115.0 | 10 | 30 | 0.9 | 400 | 3.80 |
125.0 | 145.5 | 10 | 30 | 0.9 | 480 | 7.20 |
150.0 | 171.5 | 10 | 30 | 0.9 | 570 | 8.80 |
