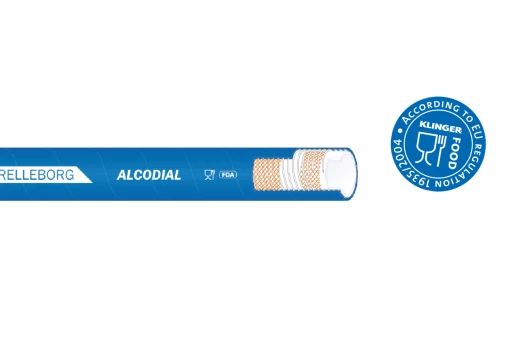

Alcodial hoses

Application

Conveyor hose specially designed for conveying alcohol up to 99%. Intended for equipping units for the production and processing of alcoholic beverages, liqueurs and spirits. Application for fixed installations at e.g. loading and unloading sites or for equipment of tankers.

The Alcodial food hose is also excellent for other food products such as milk, wine, beer, cider and fruit juices. Because of the UPE inner wall, the hose is widely applicable in case of cleaning with aggressive chemicals.

Advantages

• Exceptional flexibility that allows the hose to be effortlessly bent with a very small tube radius, without kinking danger
• The UPE inner wall is suitable for temporary alcoholic beverages without risk of migration
• Odorless and tasteless inner wall
• The smooth, seamless white inner wall is food-resistant, preventing bacterial growth and meets the most stringent French, European and American standards
• The hose has been tested and approved by British authorities for cold drinking water (max. + 23 °C) throughput.
• The wear-resistant blue outer wall does not give off
• The hose contains no phthalates.

Technical Description

Inner wall: food-grade UPE white smooth
Reinforcement: synthetic textile with in-wall steel spiral
Outer wall: NR, blue, cloth print
Temperature range: - 30 °C to + 80 °C

Standards and approval

• EU regulation n° 1935/2004
• EU regulation n° 2023/2006
• EU regulation n° 10/2011
• FDA regulations
• French regulation

conducted and approved by the French Institute of Poltiers
