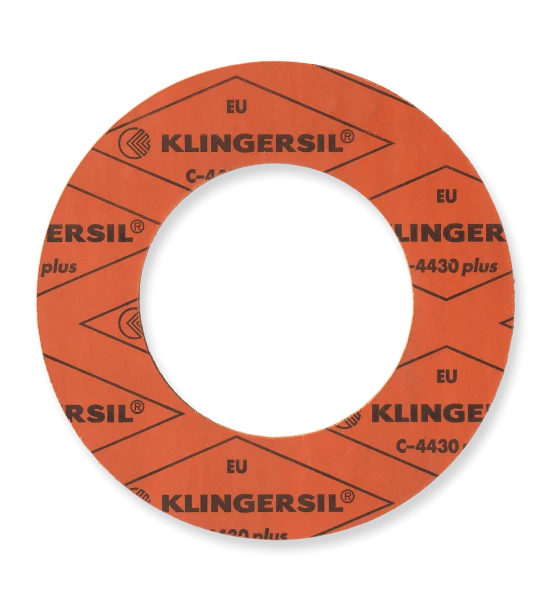

KLINGERSil C-4430Plus
A proven, consistent and durable gasket
Pioneering in gasket technology
Using the experience and technology of the KLINGER Quantum gasket as a basis, the KLINGER Technology Centre developed the KLINGERSIL® C-4430plus. It is a product innovation on the existing KLINGERSIL® C-4430. The novelty lies in the special treatment of the rubber which results in a better adhesion between the rubber and the fiber. An innovative technique which has resulted in a proven, consistent and durable gasket.
Scope
All industries, especially
- water;
- oil;
- steam;
- light acidity;
- hydrocarbons;
- light alkalis etc.
KLINGERSIL®C-4430 Plus
- universal gasket;
- 100% KLINGER product;
- based on KLINGER®Quantum technology;
- Optimized composition of synthetic & glass fibers;
- unique sustainable manufacturing process.
Features / benefits
- higher pressure resistance and gas tightness;
- greater flexibility at higher temperatures;
- improved stability under thermal loads;
- in-house production, large inventories, short delivery times;
- Available in any desired shapes.
Certificates
- BAM tested;
- DIN-DVGW;
- DIN-DVGW W 270;
- Elastomer-Guideline;
- WRAS approval;
- TA Luft;
- Fire Safe acc. to DIN EN ISO 10497.
Watch the product video here
A founder of revolutionary seals, KLINGER has proven to be a forerunner in gasket technology for nearly a decade. With its innovative spirit, drive and enthusiasm, KLINGER remains a respected and leading manufacturer of high-quality seals. In addition to our extensive range of gasket types, we also offer training in obtaining safe flange connections, flange management and turn around service. We have our own production in Rotterdam as well as Elsloo, we offer customization and can deliver quickly.
Cost savings
This high quality gasket lasts longer and therefore requires less frequent replacement. Thus, the production process no longer needs to be shut down regularly; guaranteed a lower Total Cost of Ownership!
Safer work environment
In most cases, quality is inherent in safety. This certainly applies to the KLINGERSIL® C-4430plus. This gasket seals so well that there is no chance of hazardous liquids and gases escaping; no more dangerous situations!
Cleaner
Cleaner production without unnecessary emissions is not only better for the environment, but also provides a healthier work environment. As an employer, you are responsible for the health and well-being of your employees and people living in the immediate vicinity,
Equal material specifications
No fear of red tape!
Replacing the KLINGERSIL C-4430 with the KLINGERSIL® C-4430plus can be done one on one.
Greater flexibility at higher temperatures
The KLINGERSIL® C-4430plus can be used without problems up to as much as 60 bar or a temperature of up to 280°C. This is in contrast to standard fiber gasket materials that only have a deployment range of up to 40 bar or a temperature of up to 200°C.
More resistant to thermal loads
Higher stability of the base material has resulted in less hardening and brittleness. As a result, problems are less likely to occur at varying temperatures (e.g. start-up and shutdown of production process as well as seasons).
Higher pressure resistance
A higher load on the material is possible, resulting in higher pressure resistance.
Higher gas density
At the same surface pressure and temperature, a higher gas density is now also created.
To product catalog
For more information on the KLINGERSil® C-4430 plus gasket, please contact:
