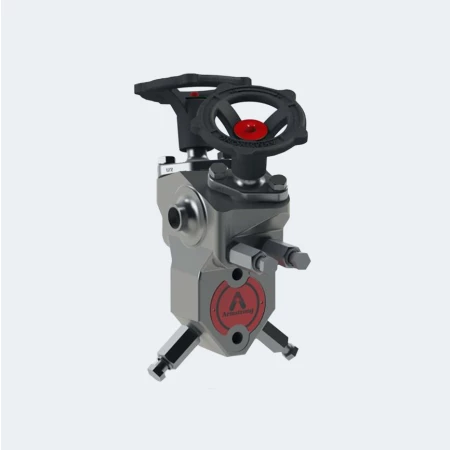

Optimal safety when exchanging steam traps

10 in 1 trap valve station
Space-saving
Less steam loss
Cost-saving

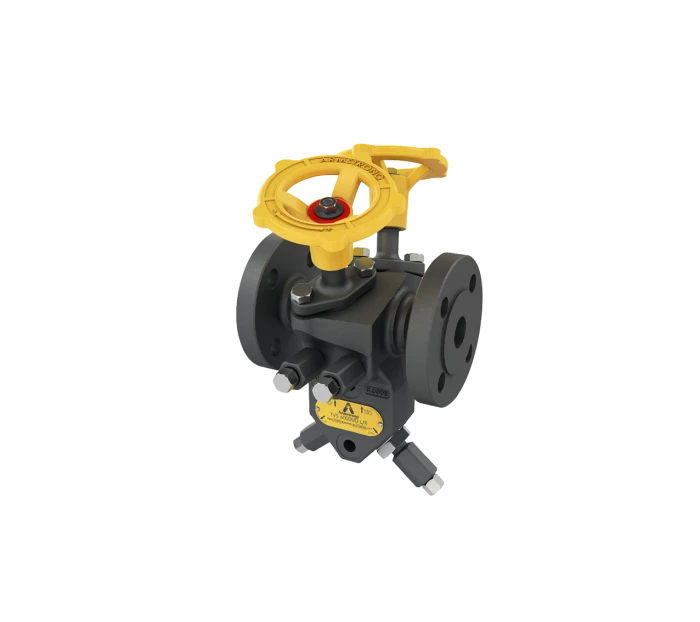

The unique and patented design as Double Isolation and Bleed of the TVS6000UD ensures maximum safety when exchanging a steam trap. This saves valuable time, minimizing steam losses.

The TVS6000UD replaces up to 10 separate fluid control equipment which saves both space and time during installation. Due to the standard construction length of the DIN flange connections, the TVS6000UD can be exchanged directly for an existing steam trap.

Advantages

of the TVS6000UD as DI&B:

Space-saving, construction length DN15, DN20 and DN25 according to DIN EN558-1 series 1.
DI&B for maximum safety.
Replaces up to 8 individual valves.
The use of piston technology provides a very reliable seal.
Trap valve station 360 degree applicability.
Connections DIN, ANSI, NPT, BSPT and SW.
Sizes ½", ¾" and 1".
Steel body and cast iron hand wheels.
Design conditions; 45 bar @ 315 °C.
Flow direction TVS6000UD, both Left-Right and Right-Left
Capacities according to the tables of the applied steam trap.
3-year warranty.

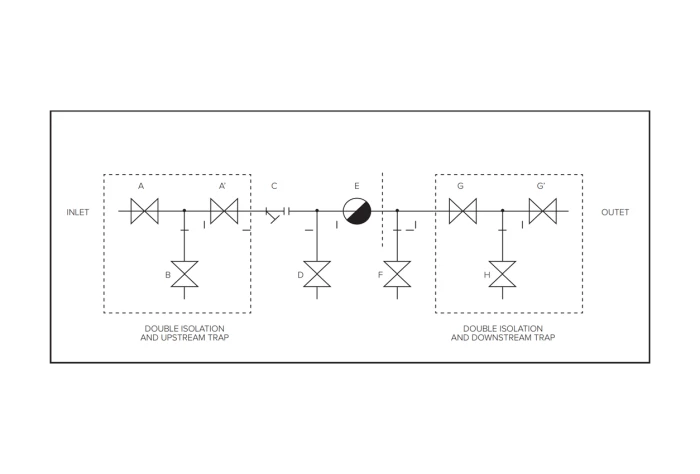

LEFT-RIGHT (L/R) VERSION

Upstream:	Downstream:
A: First inlet isolation valve	F: Test valve
A': Second inlet isolation valve	G: First outlet isolation valve
B: Bleed inlet	G': Second outlet isolation valve
C: Strainer	H: Bleed outlet
D: Depressurizing valve
E: Steam trap connection

Materials

Body: ASTM A350 LF2
Interior: STAINLESS STEEL

In this video, watch the unique operating principle of Armstrong's Double Isolation and Bleed trap valve station Type TVS6000UD.

ARMSTRONG INTERNATIONAL

OUR PARTNER IN STEAM AND CONDENSATE SYSTEMS

As a steam specialist with more than 100 years of experience, Armstrong offers a complete range of steam traps in various materials and with all possible connections. Non-standard applications can be solved with specially adapted steam traps.

www.armstronginternational.com

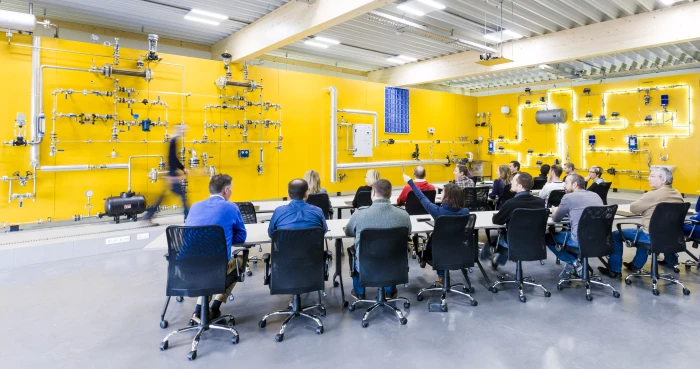

TRAININGS AND EDUCATION

Knowledge of the system is crucial in order to safely produce as best as possible and detect problems early. Your staff must therefore not only have certain skills, but also keep up with developments in technology.

KLINGER and Armstrong offer courses and training to learn skills or increase knowledge. Our expert trainers have years of experience in steam systems. Training can be given at your location, or at our own training centers in Rotterdam, Elsloo or Herstal (B).
