Sentry Gaskets

Testing flange connections without pressurizing the entire system

Makes installation of RTJ gaskets in flange connections easier and more reliable.
Speeds up the leakage testing reducing plant downtime.
95-98% reduction of the volume of testing media required
Instantly test individual flange connections for leak tightness and reliability without having to press down the entire system.
Any necessary replacements can be made immediately.
Everything handled with 1 procedure, no second visit on site needed.

Available for both Ring Type Joint and Raised Face flanges!

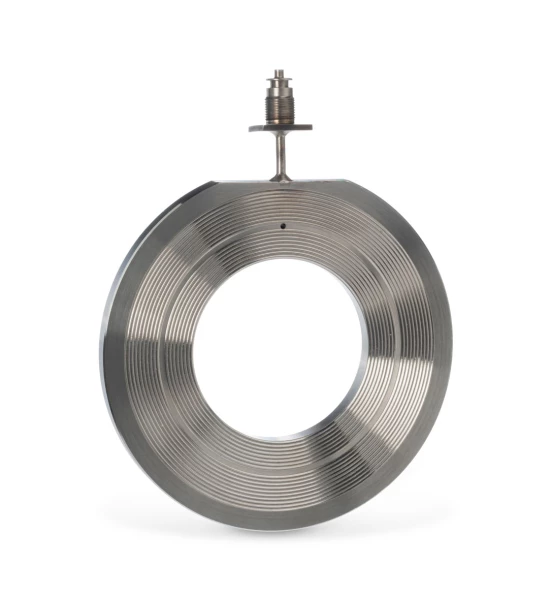

KLINGER Sentry - DS

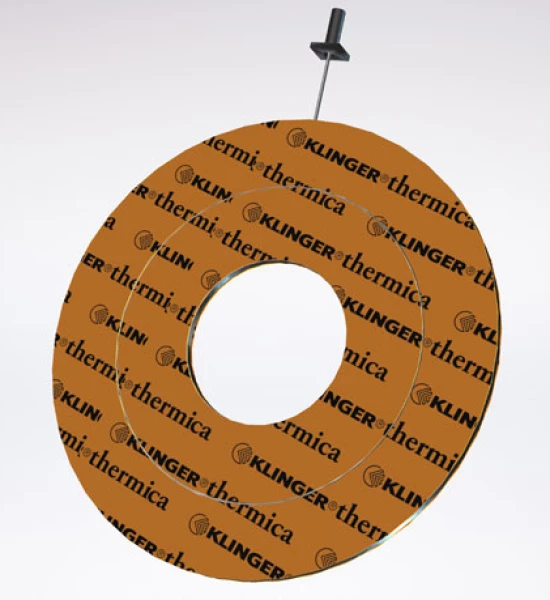

KLINGER Sentry Gasket - IK

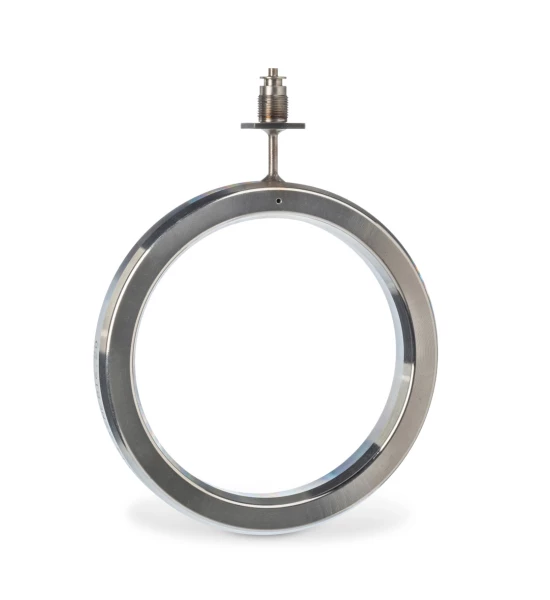

KLINGER Sentry - RTJ

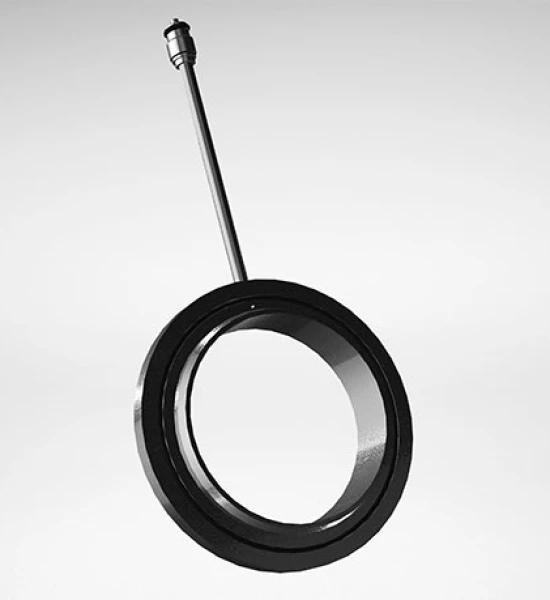

KLINGER Sentry - SR

KLINGER Sentry Gasket - Insertion Tool

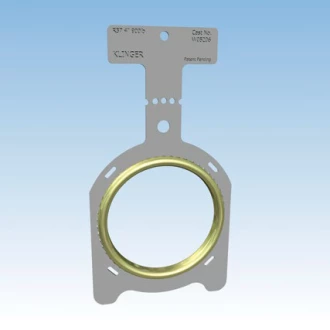

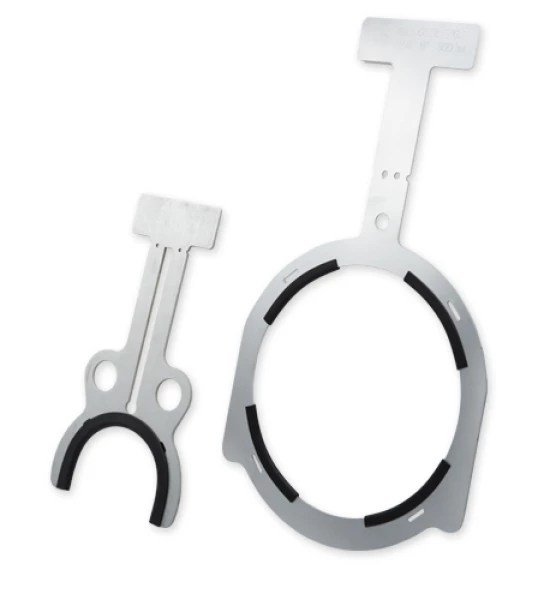

Sentry Gaskets Installation Tool (KGIT).

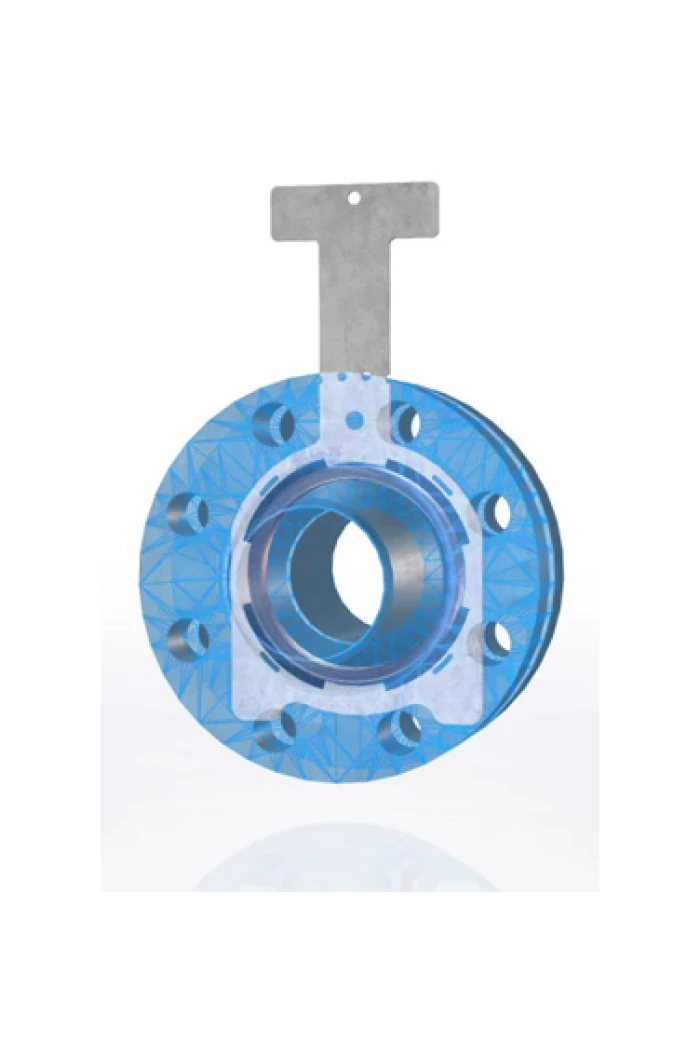

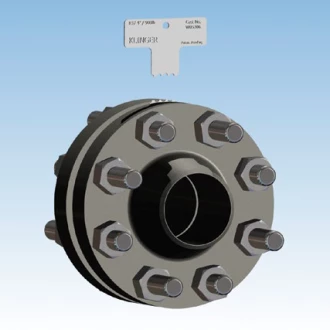

The new KLINGER Gasket Insertion Tool (KGIT) allows safe and precise insertion of a RTJ (Ring Type Joint) between two flanges, allowing a safer, easier and faster fitting process with minimal need for re-visiting.

The KGIT decreases the risk of injury to divers’ hands and fingers as the engineered profile is designed to locate accurately within the lower bolts of the flange, ensuring the gasket sits correctly in the groove.

With well-positioned holes designed to accommodate standard subsea tooling, the KGIT aids transportation and fitting. Flange alignment tools can be left in the flange as the gasket is fitted minimising movement of the flanges ensuring there is no ‘bruising’ or ‘pinching’ to the gasket.

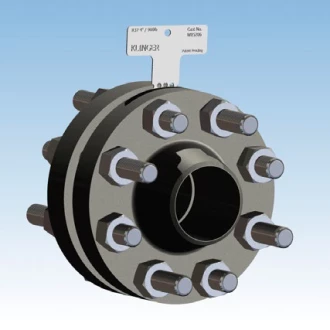

The KGIT offers improved flange assembly times and increased safety. The shape of the tool also prevents the handle from rotating in front of the studbolt holes, eliminating the need to move the gasket to add the remaining bolts.

Once installation is complete, the handle of the KGIT can be easily broken off andretained for records. Due to a cathodic reaction caused by immersion in salt water, the KGIT will corrode away over time.
