ChemValve - PTFE Lined butterfly valves

ChemValve PTFE Lined Butterfly valves

ChemValve butterfly valves; essential for hazardous applications

Swiss quality and reliability

KLINGER takes production pocesses to the next level

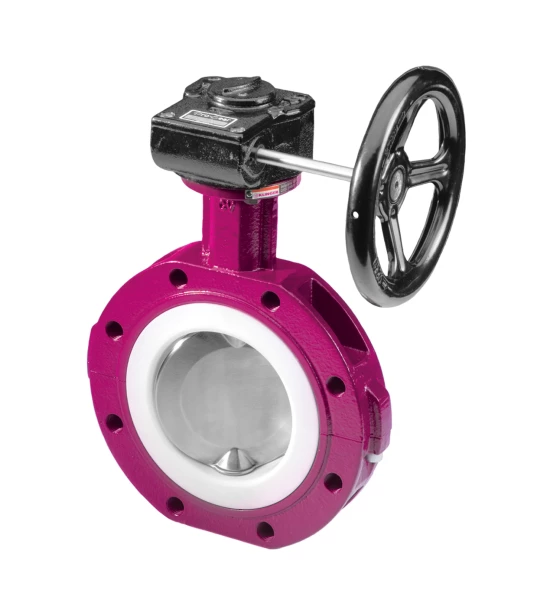

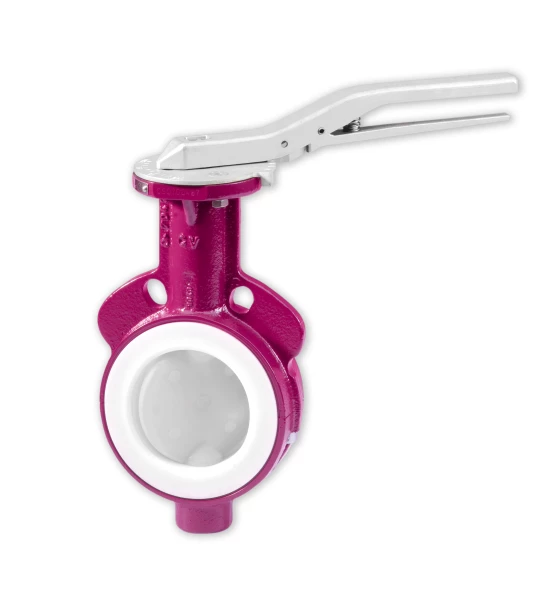

Chemvalve butterfly valves

Features

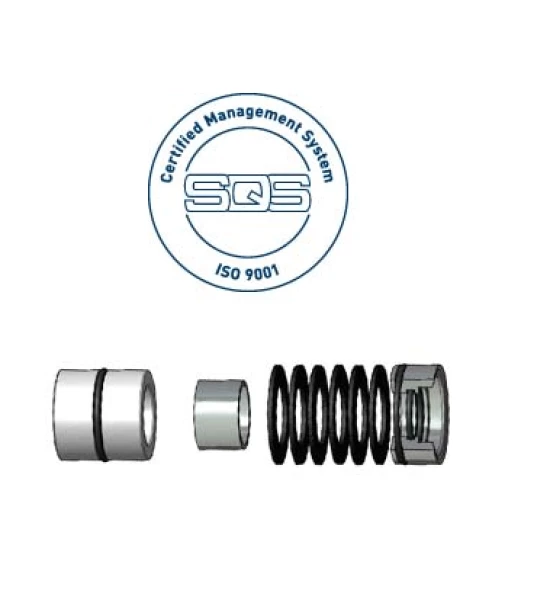

Safe and leak-proof

Long-term and economic

Additional features

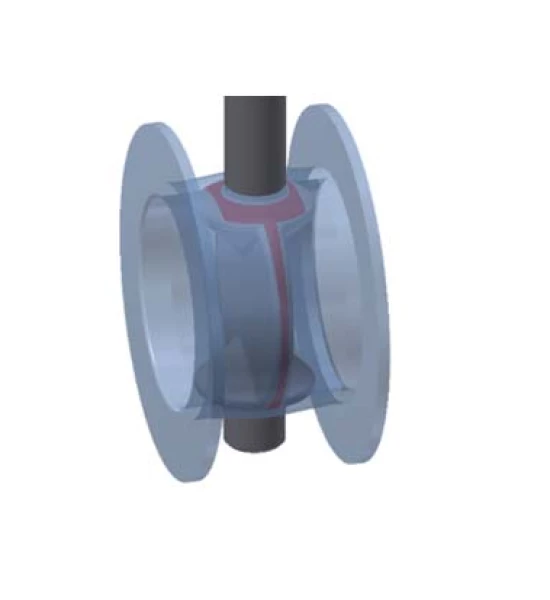

Unique

Technical data

NOMINAL DIAMETERS: DN 25-1200 / 1"-48"
FLANGE CONNECTIONS:

" EN 1092-1, PN 10-16
" ASME B16.5, Class 150
" JIS 10K

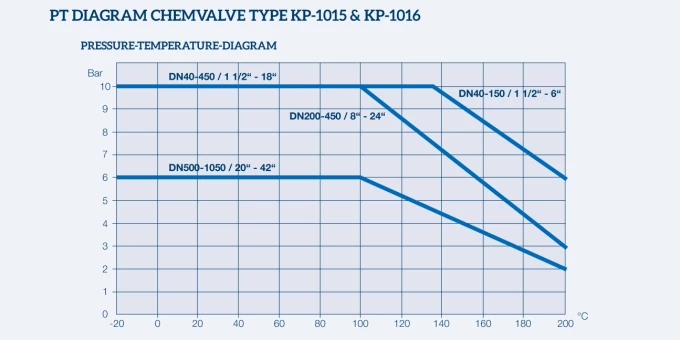

MAXIMUM WORKING PRESSURE: " DN 25-450: 10 bar
" DN 500-600: 6 bar
" DN 650-1200: 3 bar
TEMPERATURE RANGE: " -20°C to 200°C
FACE-TO-FACE LENGTH: " EN 558, Series 20
DISC MATERIALS: " PFA
" PFAc, Conductive PFA
" Stainless Steel, 1.4404
" Duplex, 1.4462, 1.4469
" Titanium Grade 2, 3.7035
" Hastelloy C, 2.4602, 2.4819
LINER MATERIALS: " PTFE
" Modified PTFE
" Modified & Conductive PTFE
" UHMPE
BACKUP MATERIALS: " Silicone
" EPDM
" FKM
BODY MATERIALS: " Ductile Iron (EN-JS1049)

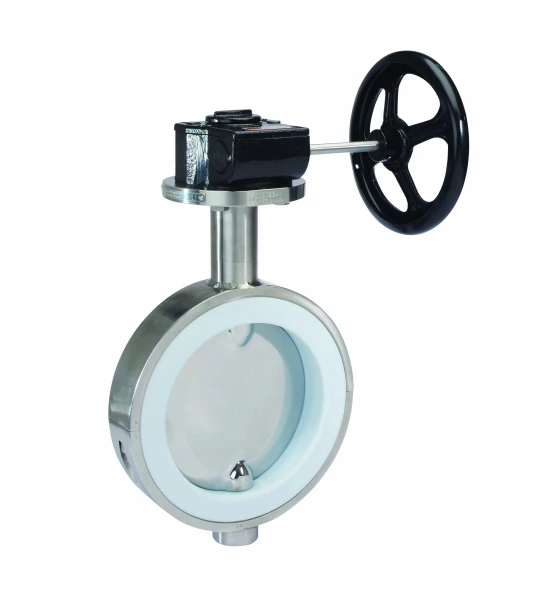

" Stainless Steel (1.4404)
" Carbon Steel (S355J2)

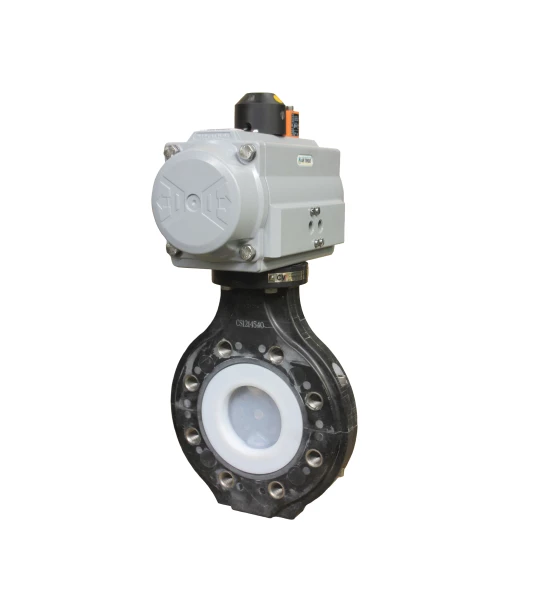

" Plastic (VE-CF)
CONFORMITY: " PED 2014/68/EU
" ATEX 2014/34/EU
" Food (EC) No. 1935/2004, FDA
" TA-Luft, ISO 15848-1
PRESSURE TEST: " EN 12266-1
