Stainless steel heat exchanger longitudinal bulkhead seal - T4 20 or 30

Stainless steel heat exchanger longitudinal bulkhead seal | T4 20 or 30

Stainless steel heat exchanger longitudinal bulkhead seal | T4 20 or 30
Stainless steel heat exchanger longitudinal bulkhead seal | T4 20 or 30
gallery slider left
gallery slider right

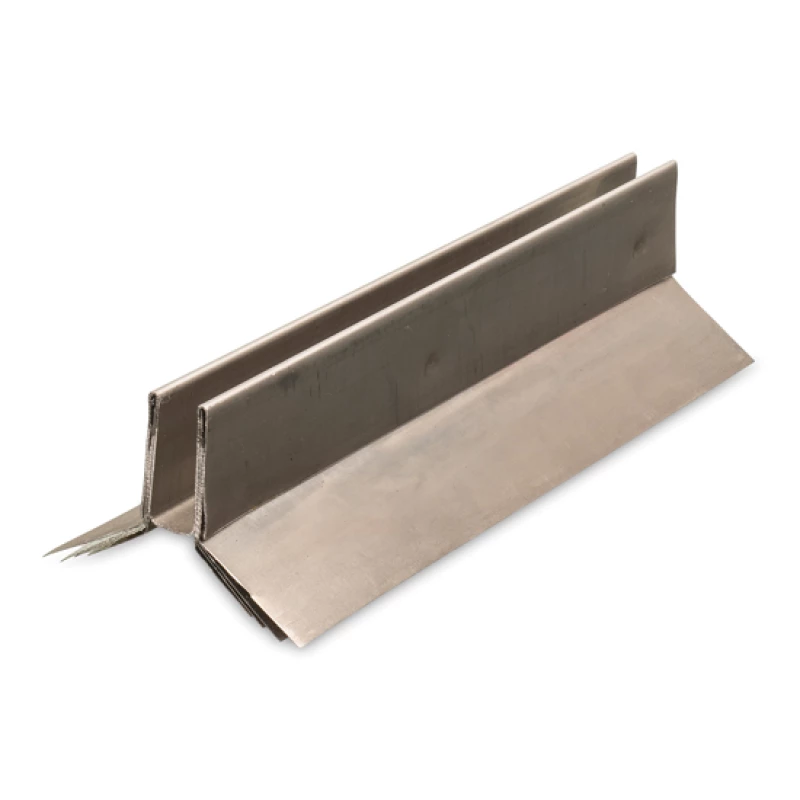

AISI 316 Ti spring steel package

Suitable for: steam, oil, hydrocarbons and many chemicals

  • This seal greatly increases the efficiency of your heat exchanger.
  • Media mixing is reduced to virtually zero.
Specifications
Stainless steel heat exchanger longitudinal bulkhead seal | T4 20 or 30
Stainless steel heat exchanger longitudinal bulkhead seal | T4 20 or 30
Previous series Next Series

Specifications

Type T4 20 or 30
Material AISI 316Ti
Max. temperature 550ºC.
Construction A laminated holder 0.5 mm thick, 1000 mm long AISI 316Ti, with a package of 4 slats on each side 0.2 mm thick, up to 6000 mm long AISI 316Ti.
Explanation The T4.30 has slats of 30 mm and the T4.20 of 20 mm. Which type is the right choice depends on the diameter of the exchanger and the gap (f). Where very high demands are placed on the seal we can place PTFE foil between the last 2 fins, the temperature is limited to 250 ºC.
Order example A 316Ti seal with 30 mm fins, the exchanger diameter is 1000 mm, gap (f) is 4 mm, partition thickness is 10 mm, length 2000 mm.
This then becomes a "T4.30.10/2000"
