Insert discs and insert gaskets

Work safely on your installation with KLINGER

For blocking off flange connections, so-called "stab pans / sheaves" are used. This is to ensure that the environment in which and the equipment to be worked on are not at risk. Depending on the work location, each company has its own specific procedures with corresponding regulations, permits, labels, way of reporting, etc.

KLINGER produces not only the usual flanges, but also according to customer specifications. If no specific thickness is prescribed, we supply thicknesses equal to the usual gasket thickness. By using special extra-strong materials, the thinnest possible flanges can be used, which is desirable in view of mounting between the flanges pulled apart and the weight.

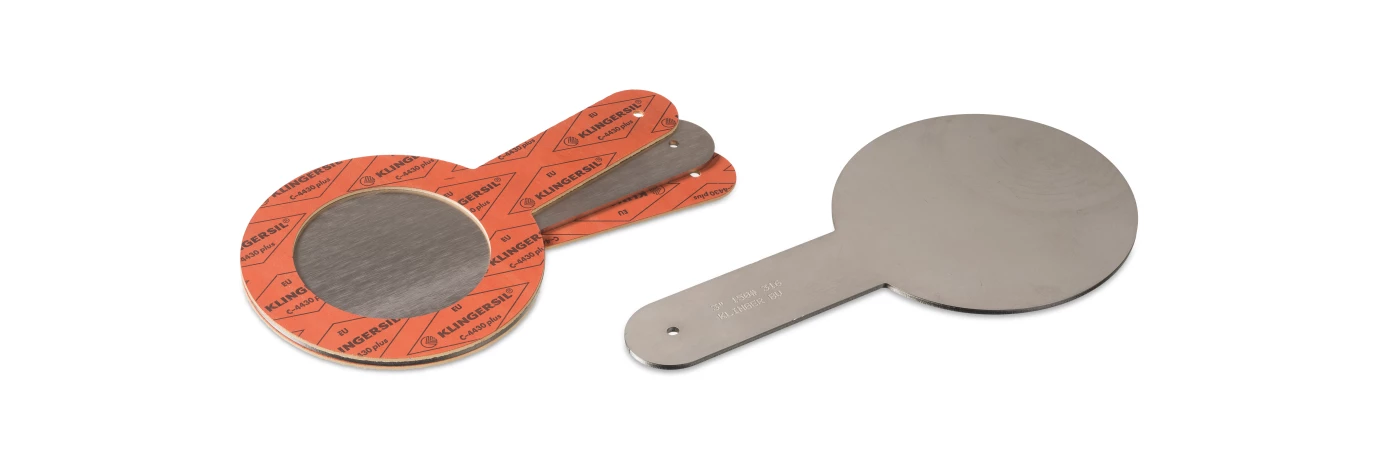

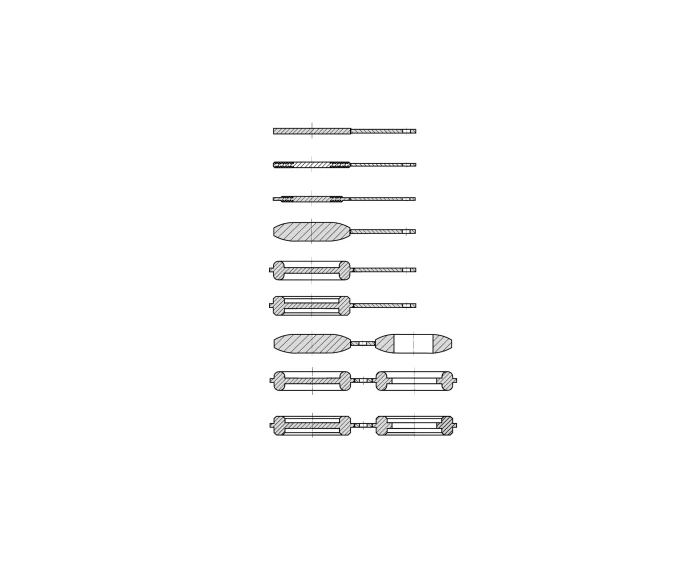

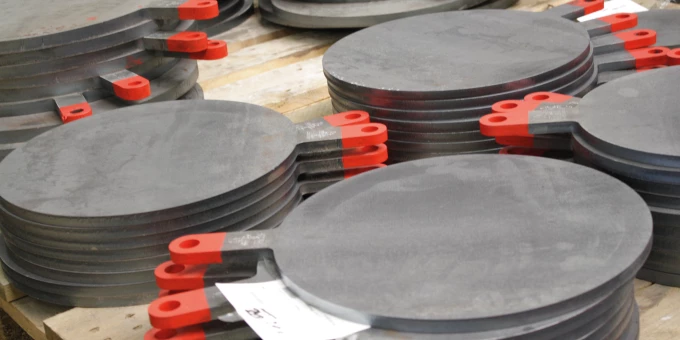

  • Flat dense disk with handle A1S

  • Closed comb profile disc with handle B7S

  • Closed comb profile disk with handle and centr. B97

  • Closed lens ring mold with stem A5S

  • Close RTJ oval with stem A11S

  • Close RTJ octagonal with stem A13S

  • Lens ring in glasses design A5BS

  • RTJ oval in glasses design A11BS

  • RTJ octagonal in spectacle design A13BS

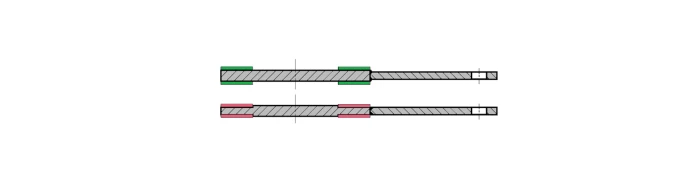

The handle comes standard with coding consisting of make, nominal bore and pressure class and any color coding. The stem is provided with a suspension hole as standard. If required, a KLINGER SIL, KLINGER graphite or KLINGER TopChem material is adhered to the stem for optimum sealing. Insert discs and spectacle discs are supplied for all common flanges and in all common materials.

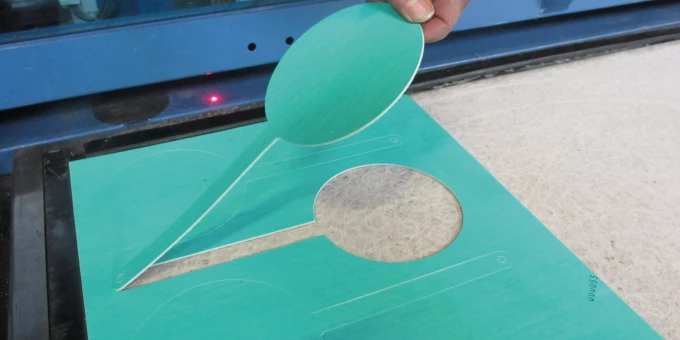

STEMMED DISC GASKETS

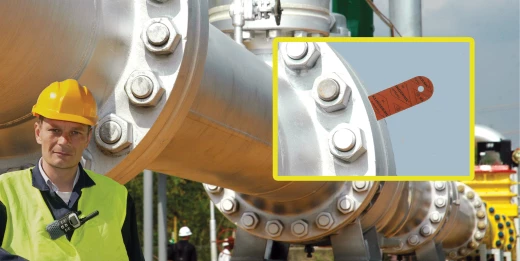

Often, gaskets without stems are used during the blocking process with metal shanks. As a result, there is a danger that - after removing the insert - the "temporary gasket" is left in place and it is RETURNED between the flanges. With all the dangers this entails!



Additional safety aspect by:

  • Stem to the gasket
  • Imprint with type designation


During the removal of plug screws, temporary gaskets may be inadvertently replaced with another type of and therefore "wrong" gasket. Installations are then no longer safe and leaks will quickly become visible. These mistakes are easily avoided by using our gaskets.

All types of KLINGER flange gaskets are also available in the form of stick gaskets including stem AND print. This allows you to see at a glance which type of gasket is placed between the flanges and makes replacing the temporary gasket with a final and "same type" gasket a lot easier.



TIP OF KLINGER


ALWAYS use box gaskets! We often see and hear that metal flanges are installed without gaskets. The risk of the metal connecting disk damaging the flange surface is high. This only increases the occurrence of future unsafe situations. For optimal preservation of your flanges, KLINGER recommends that you always use metal gaskets in combination with gaskets. If the space between the flanges does not allow two gaskets and an additional thrust washer, our product specialists will be happy to suggest other possible solutions.

  • According to customer specification
  • Version: round with handle or in glasses version
  • Possibly on a rental agreement basis
  • Higher quality through advanced machinery
  • Production in house; so fast delivery!
