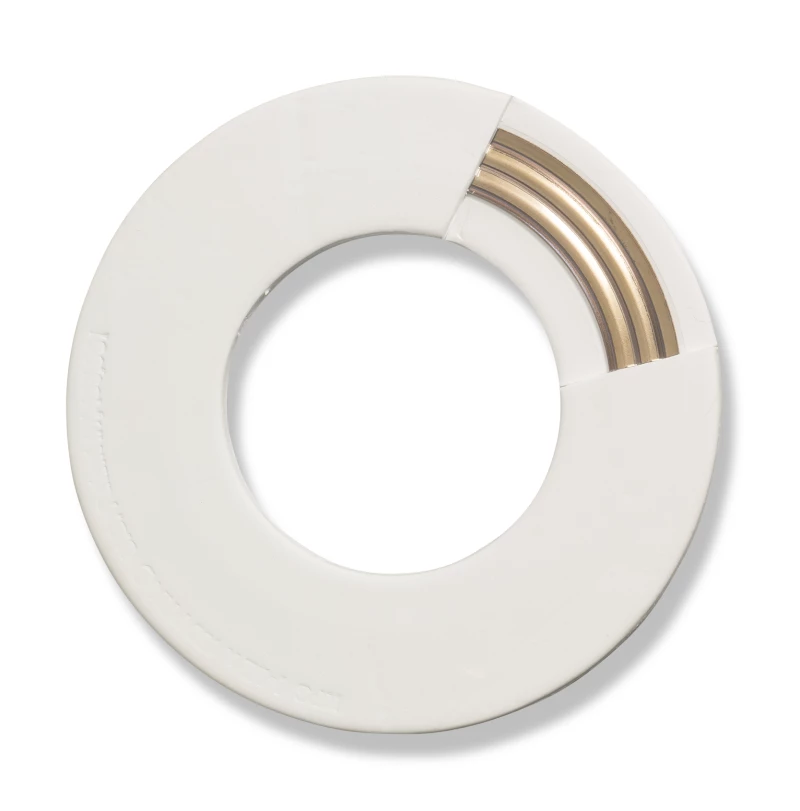

VSP gaskets | PITA® DNA™
ePTFE with integrated corrugated insert
Suitable for: Portable Tank Containers and flange connections, where only low bolt forces are available.
- Chemical resistance of ePTFE.
- Creep and flow.
- High leak tightness at low bolt forces.
- High flexibility due to special insert.
- High-density joints ensure long-term leak-free reliability.
- Saving costs for Retorque - PITA® seal is "Torque-Holding."
- Retightening is not necessary during transport.
Urgency or questions about availability?
Specifications
| Type | PITA® DNA™ |
| Material | ePTFE with integrated corrugated insert |
| Insert | RVS 1.4401 |
| Temperature | Min. -200°C - Max. 315°C |
| Pressure | Full vacuum to maximum pressure according to flange standard |
| Standard thickness | 3.2 mm (1/8") |
|
|
|
|
ASME Gasket Factors
|
|
| m = | 2,5 |
| y = | 1200 psi (8.2 MPa) |
|
|
|
|
PVRC Gasket factors (ROTTdata)
|
|
| G(b) = | 263 psi (1.8 MPa) |
| a = | 0,299 |
| G(s) = | 2,93 E-10 psi |
Contact
For more information about our PTFE gaskets, please contact us at:
